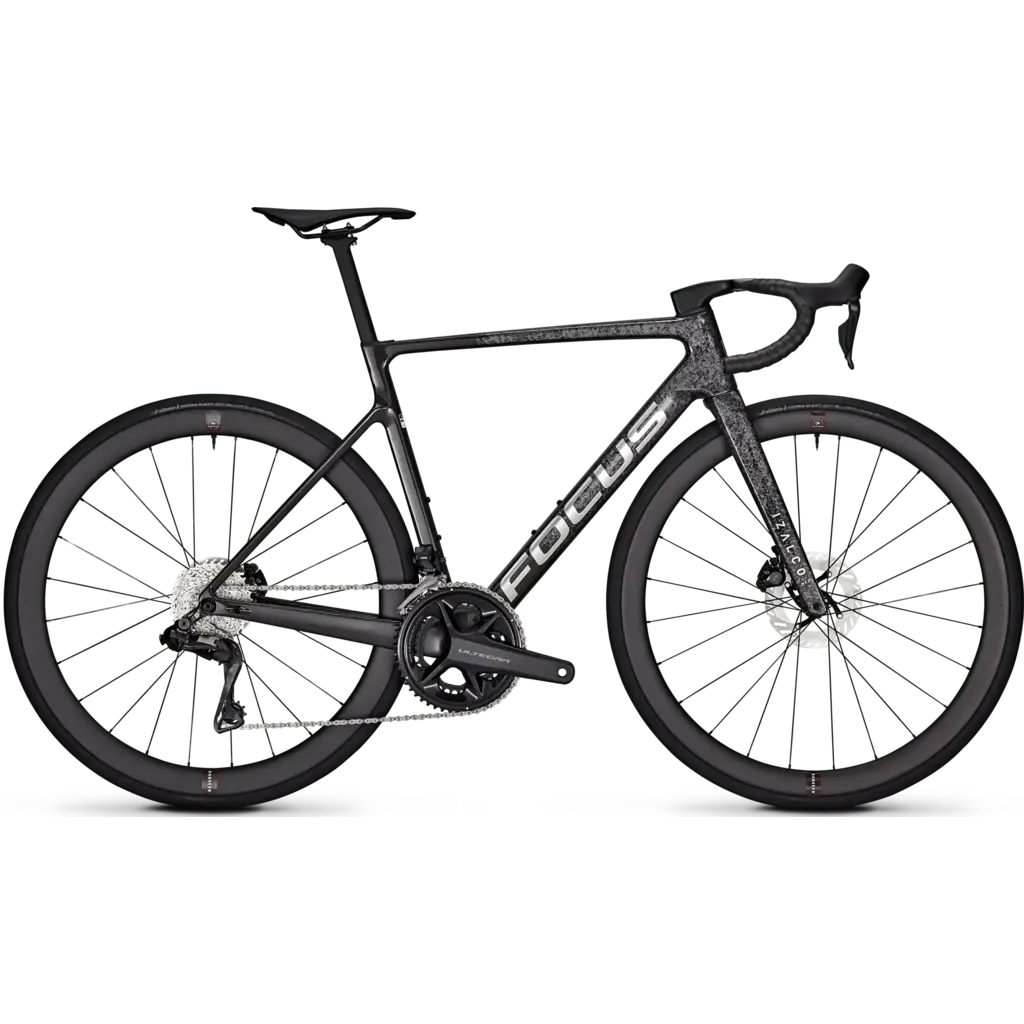

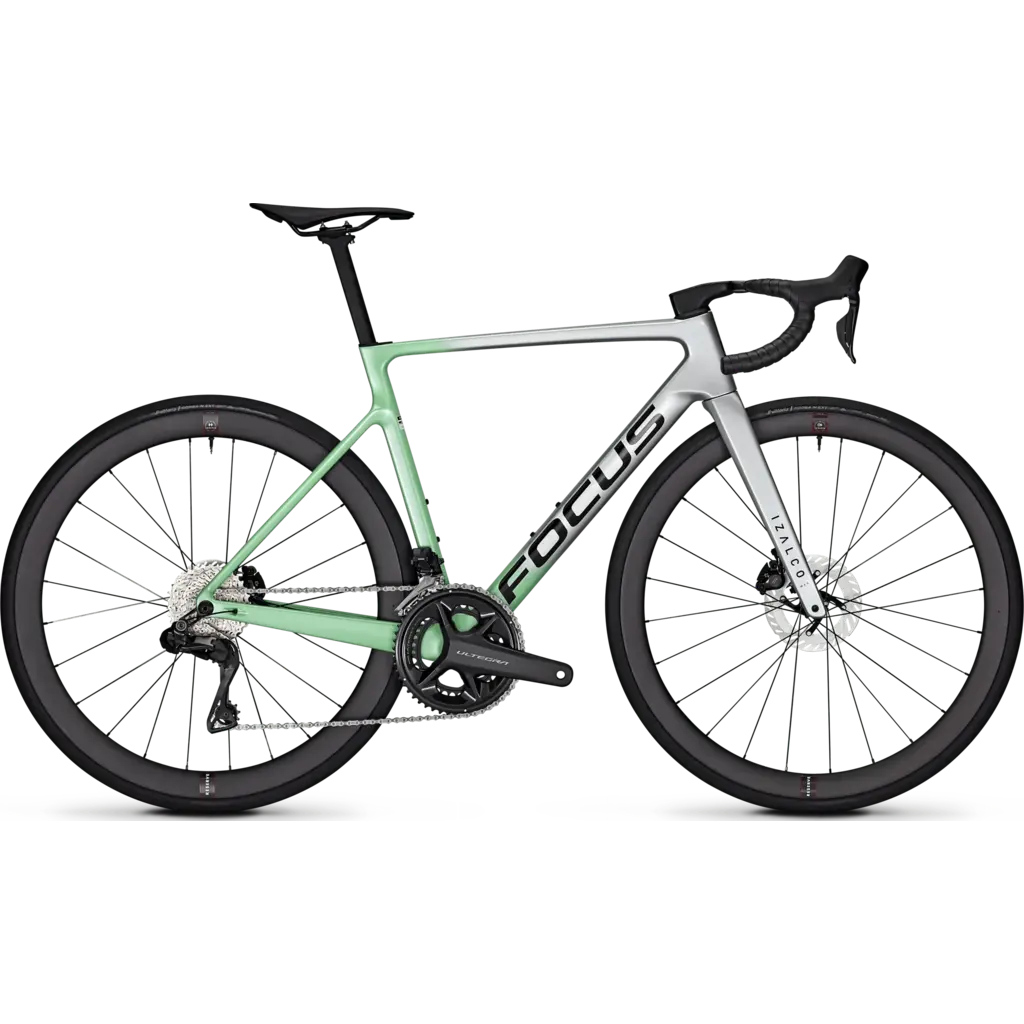

2026 Focus Izalco Max 9.7

Frameset & Cockpit

• Frame: MAX technology carbon, disc, 142x12 mm thru axle, flat mount 160/140 mm (865 g in size M)

• Fork: MAX technology carbon, integrated C.I.S. cable routing, 100x12 mm thru axle, flat mount (400 g)

• Handlebar / Stem: Reserve One-Piece Cockpit, carbon, drop: 125 mm, reach: 75 mm, flare: 6°, stem angle: -6° (330 g raw weight)

• Headset: ACROS IS 52/ IS52 (ICR), FOCUS integrated C.I.S.

• Seatpost: FOCUS Aero Carbon, D-shape, set-back: 0 mm (XXS–L), 15 mm (XL–XXL)

• Saddle: fi'zi:k Vento Antares R5

Drivetrain & Power Meter

• Shifters: Shimano Ultegra Di2 ST-R8170 (2x12-speed electronic)

• Front Derailleur: Shimano Ultegra Di2 FD-R8150

• Rear Derailleur: Shimano Ultegra Di2 RD-R8150, 12-speed

• Crankset: Shimano Ultegra FC-R8100, 52/36T with integrated 4iiii Precision Power Meter

• Cassette: Shimano CS-R8101, 11-34T (12-speed)

• Chain: Shimano CN-M8100

• Bottom Bracket: Shimano Pressfit Road BB86

Brakes

• Brake Calipers: Shimano Ultegra BR-R8170 hydraulic disc

• Brake Rotors: Shimano RT-CL800, 160 mm front / 160 mm rear

Wheels & Tyres

• Wheelset: Reserve 40|44 Road Carbon (Front rim height: 40 mm, Rear rim height: 44 mm)

• Tyres: Vittoria Corsa N.EXT wide, tubeless ready, 700x29c (29-622)

Weight & Limits

• Bike Weight: ~7.50 kg (Size M)

• Max Tyre Clearance: 30 mm

• Max System Weight: 110 kg (rider + bike + gear)
