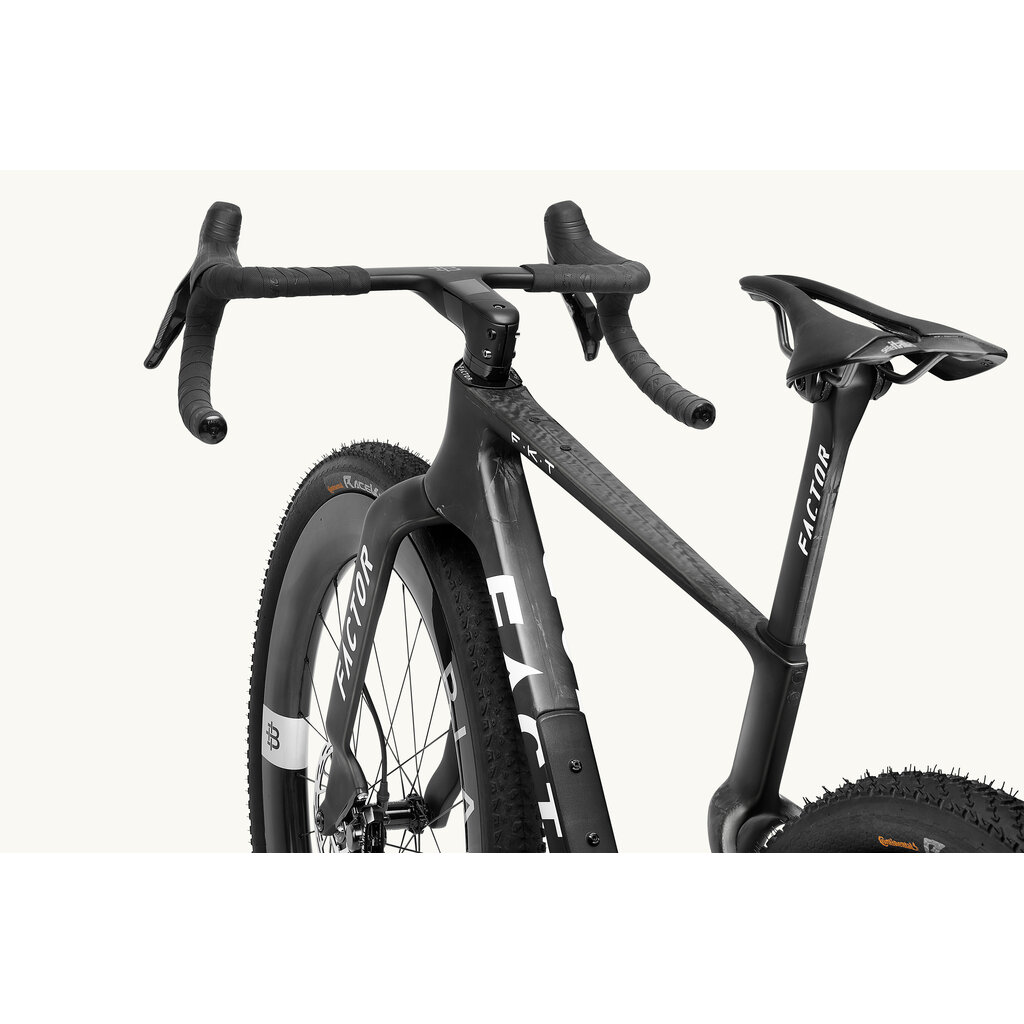

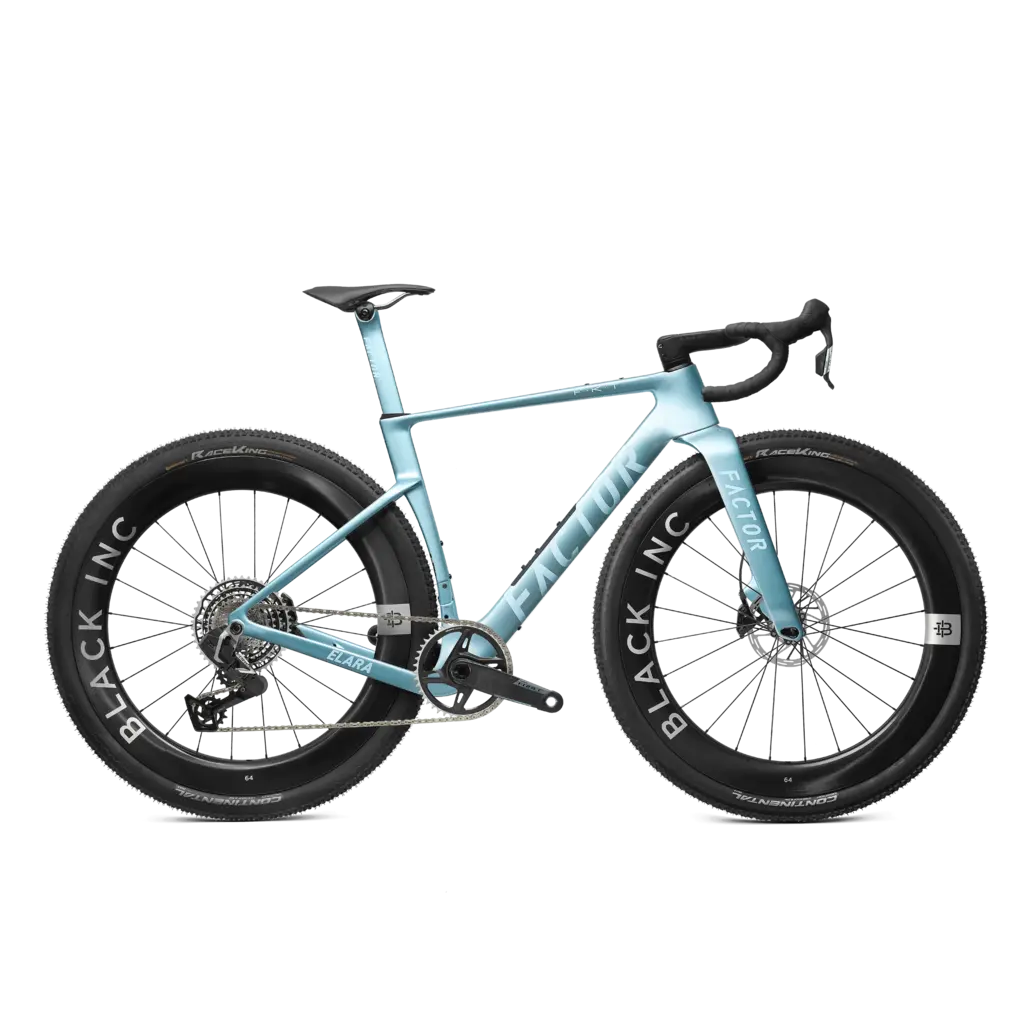

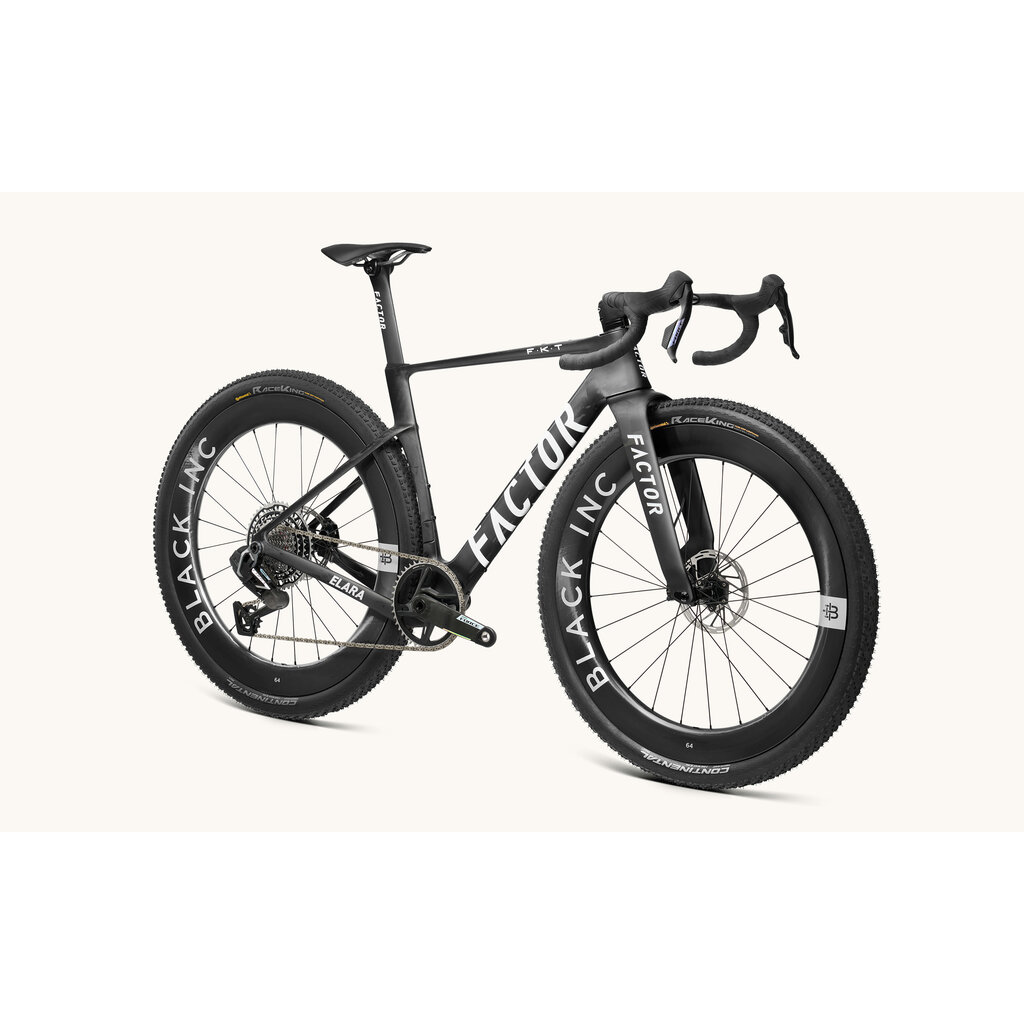

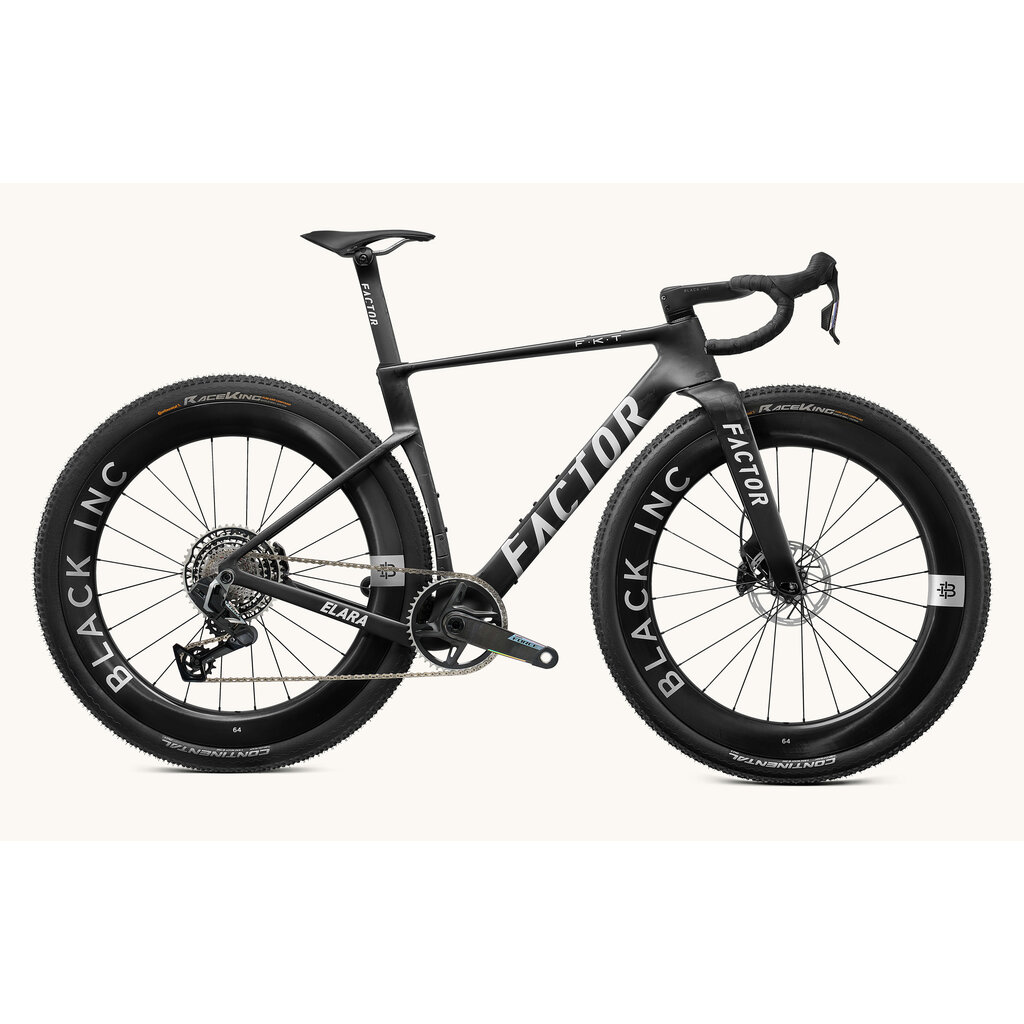

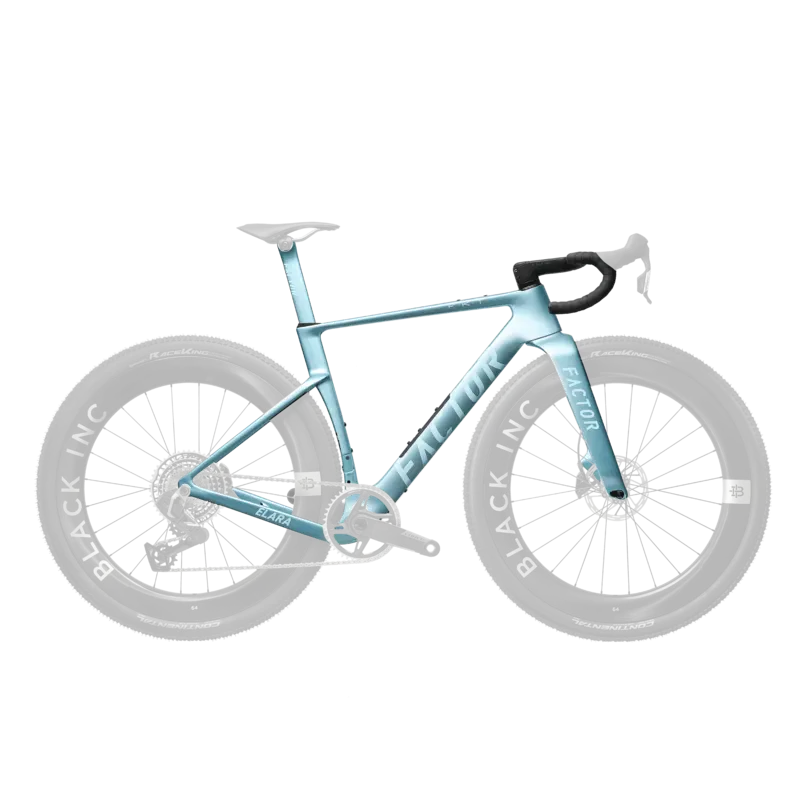

| Frame | Toray®, Nippon Graphite® Pan-Based Fiber |
| Fork | ELARA Wide Stance Fork |
| Seatpost | 0 and 20mm setback available |
| Barstem | Black Inc Integrated Barstem Reach 80mm, drop 114mm. Multiple stem lengths and bar widths available |
| Headset | 1.5″ bearings |
| Head Tube Diameter | 1.5″ upper and lower |
| Saddle Rail Clamps | 7x7 and 7x9 |
| Bottom Bracket | CeramicSpeed T47A Aluminium cups / CeramicSpeed bearings available for DUB and 24mm. |
| Cable Routing | Internal |
| Compatible Components | Electronic |
| Brake type | Disc |
| Max Rotor Size | 160mm front & rear |
| Max Chainring | 52-tooth |
| Front Axle | 12 x 100mm thru-axle |
| Rear Axle | 12 x 142mm thru-axle |
| Wheelset | Black Inc 64 |
| Wheel Size | 700c |
| Max Tire Clearance | 57mm measured |
| Included Accessories | Downtube storage bag |
| Manufacturer Warranty | Limited Lifetime Warranty |
