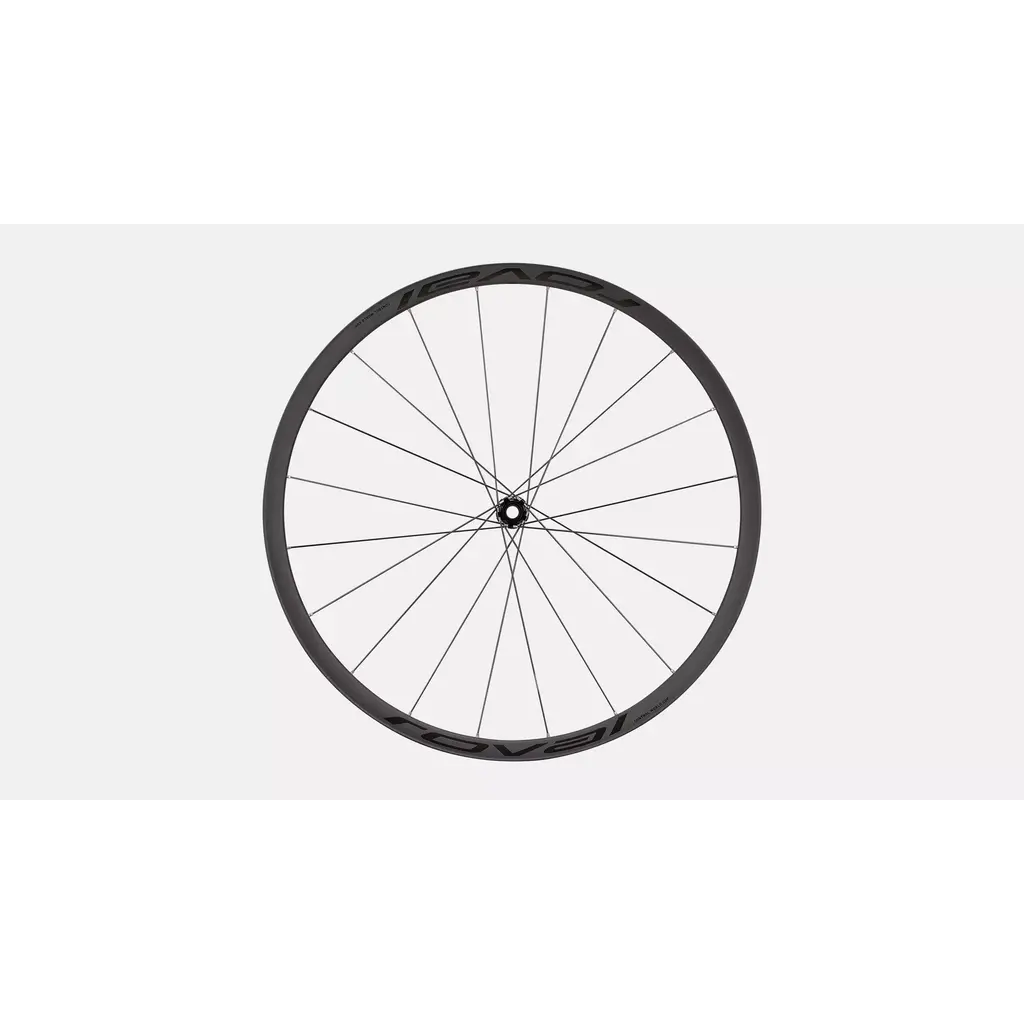

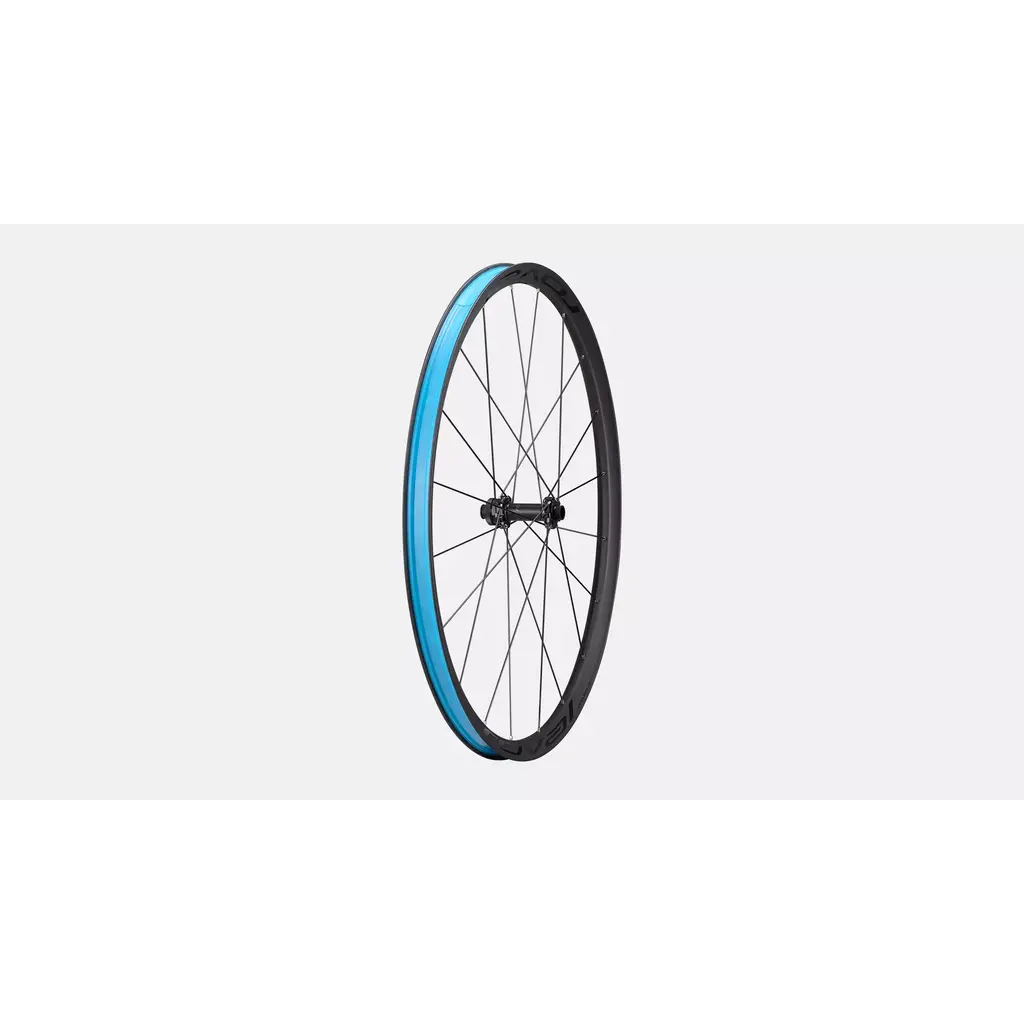

Front Rim
Control World Cup Carbon 29" (WC042)
Front Rim Dimensions
Depth: 26mm, External Width: 36.5mm, Internal Width: 28.5mm, Bead Hook Width: 4mm
Rim Construction
Carbon Clincher Mini Hooked
Wheel Size / ETRTO
29"/ 622 mm
Hole Count
20H
Tubeless Compatibility
Yes
Insert Compatibility
Yes
Brake Compatibility
Disc (Centerlock)
Valve Stem Length
Roval Tubeless Valve, Alloy 34mm

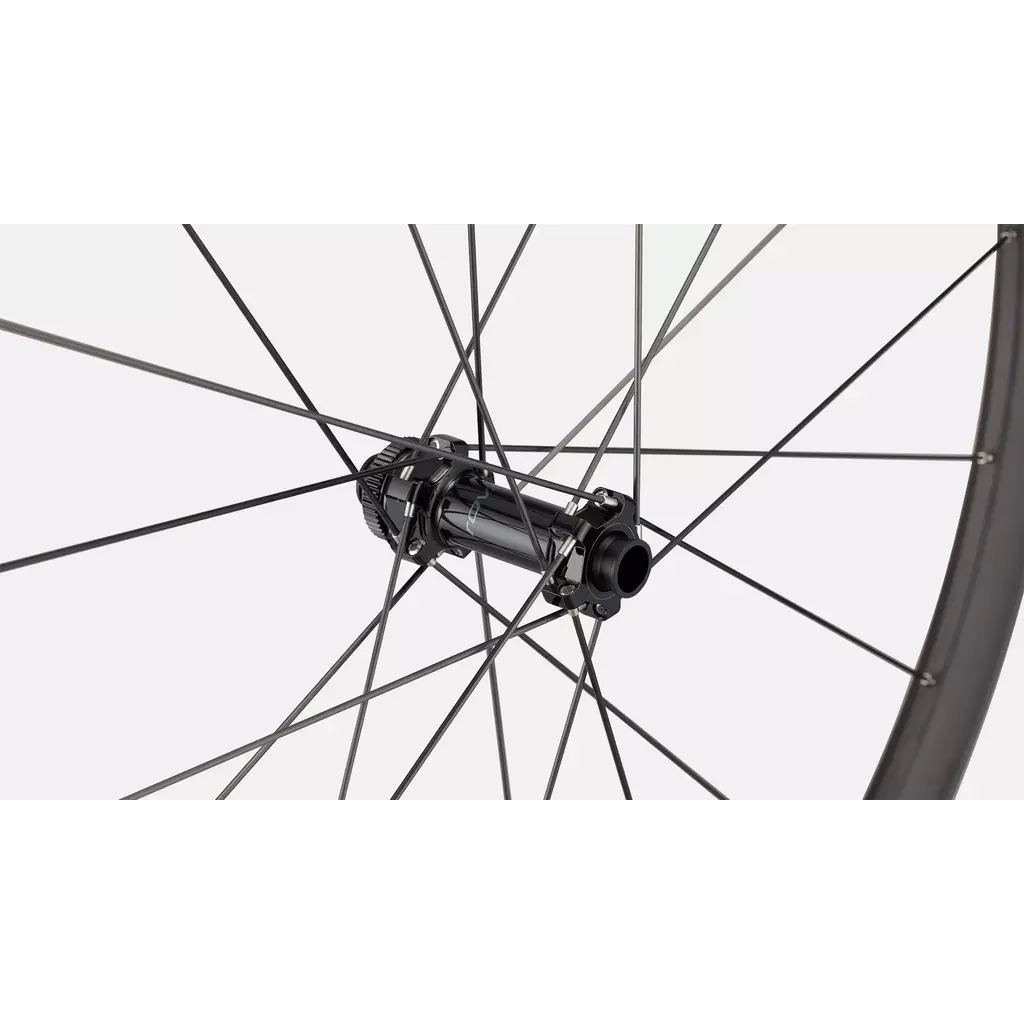

Front Hub
Roval Low Flange Mountain Hub, Center Lock, 15x110mm, 19mm OD End Caps Installed (LFM23)
Front Hub Bearing
DT Sinc Ceramic Bearings - DS: 6802 (15 x 24 x 5 mm), NDS: 6802 (15 x 24 x 5 mm)
Front Spokes
Custom Tuned for Roval, Vonoa Carbon w/Ti End Pcs: Straigh-Pull, 20qty
Front Lacing Pattern
Two-cross/Two-cross (1:1)
Nipples
VONOA Internal Carbon Spoke Nipple, Alloy, 8.1mm
Approved Tire Widths
1.9-2.6
Max Pressure
Tubeless 40psi , Tubed 40psi
Tire Type
Tubeless, Tube Type Clincher
Tubeless Tape Width
30mm
Design Tire
Specialized Air Trak 29x2.35 Flex Lite
Front Weight
452g (with valves and tape)
