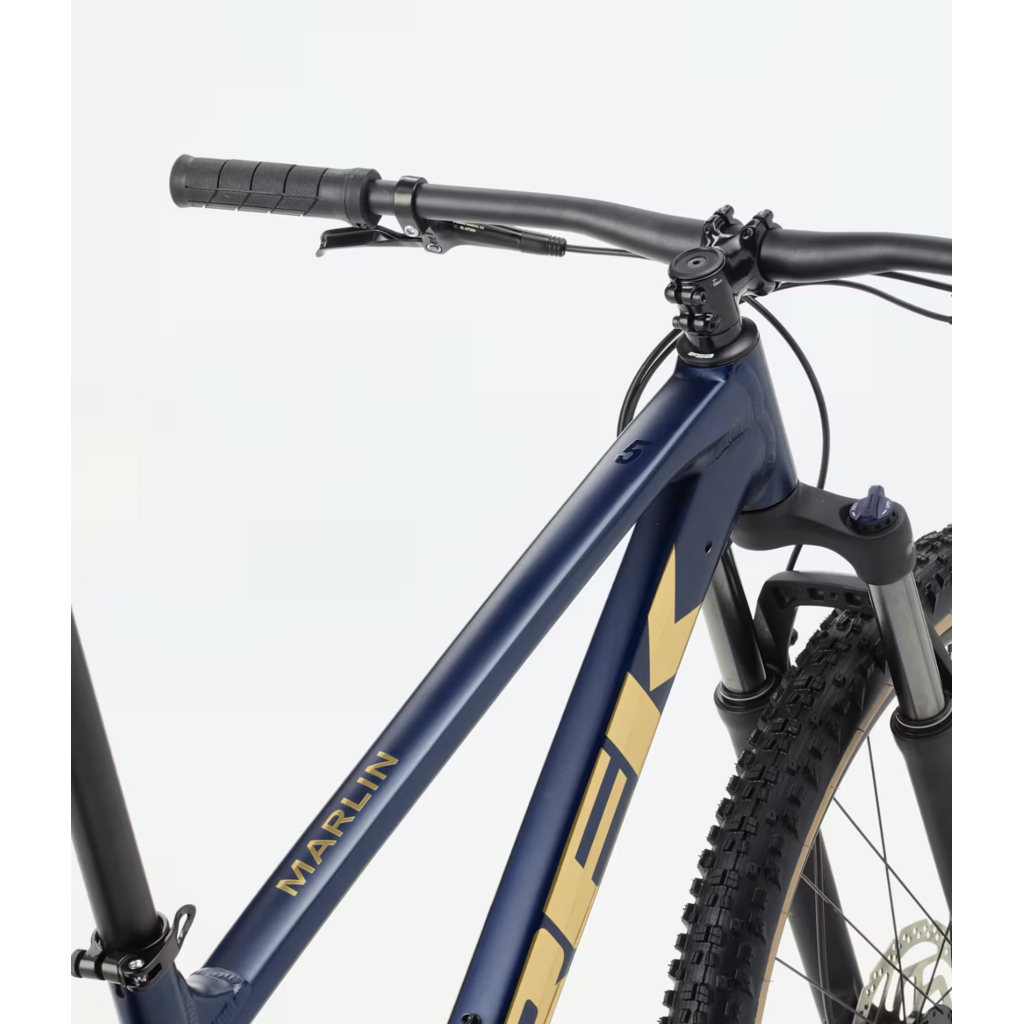

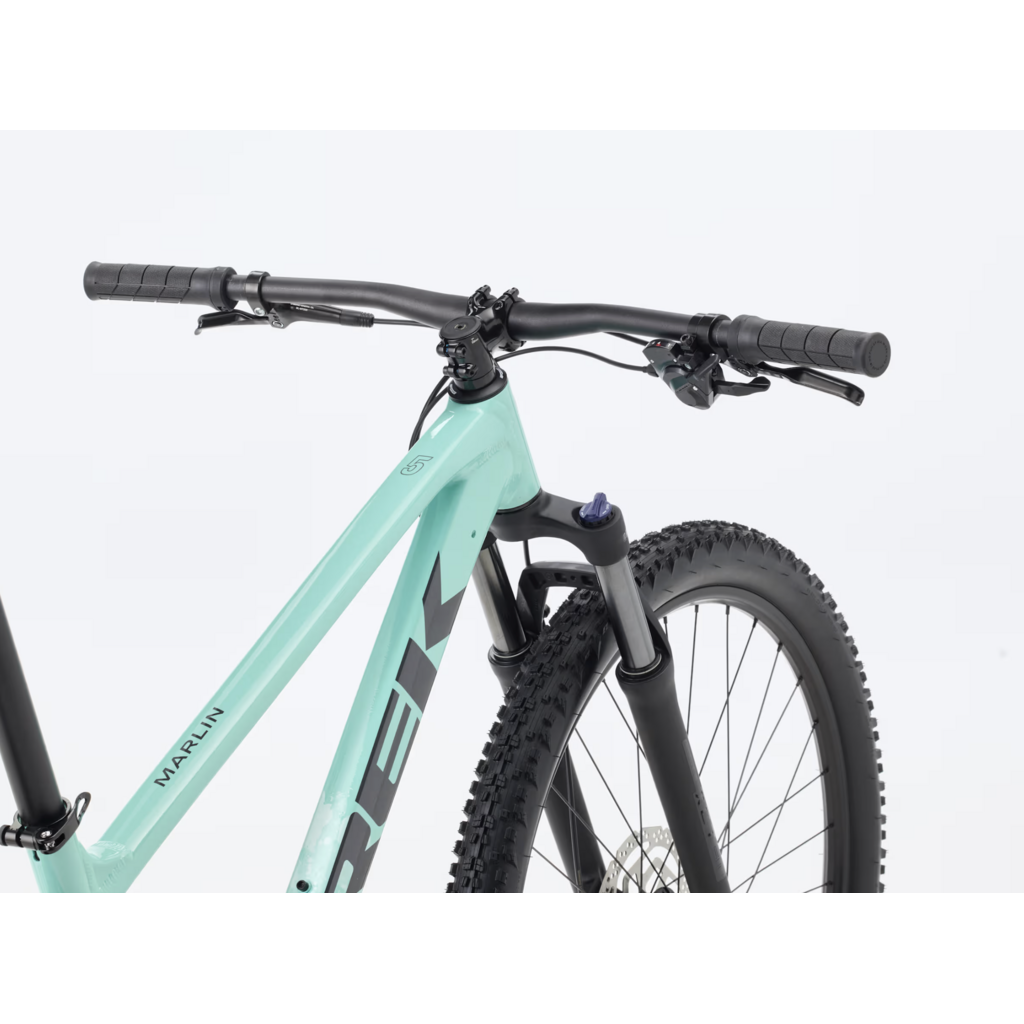

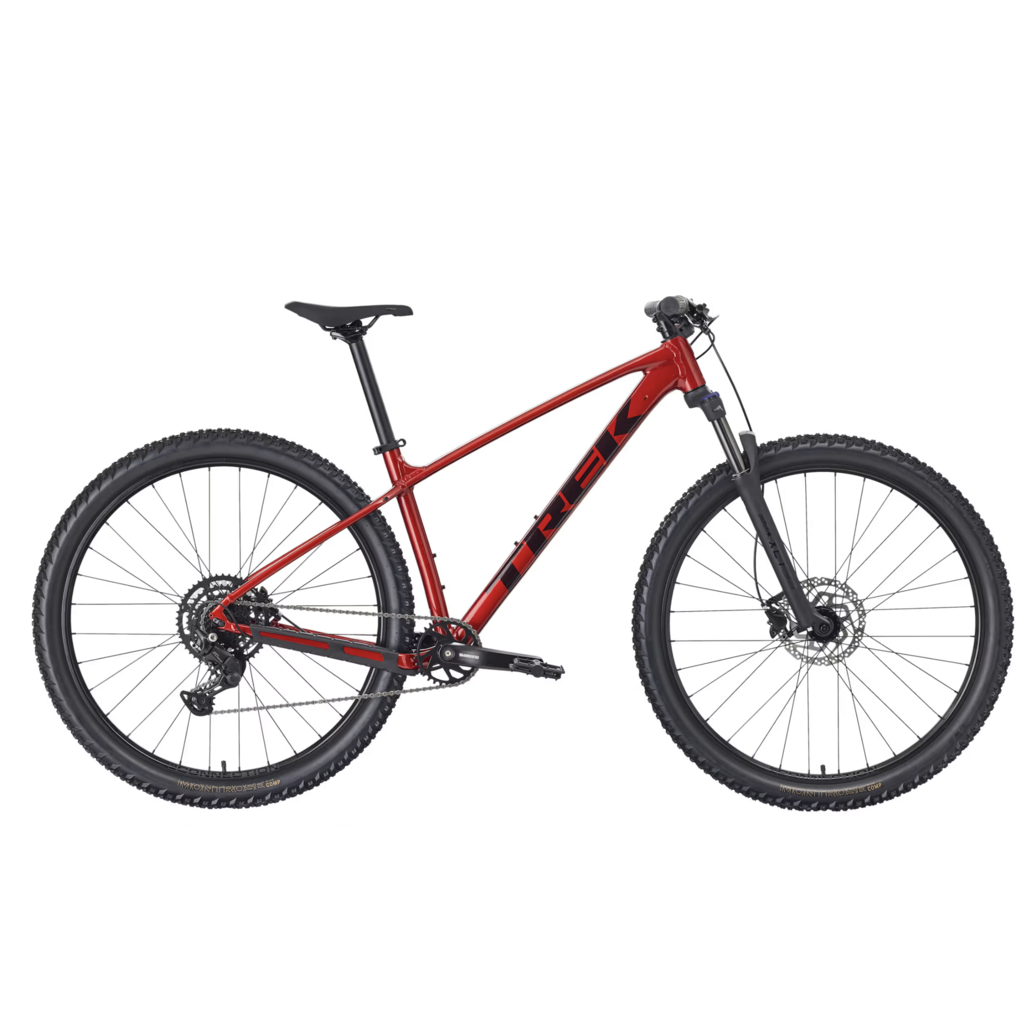

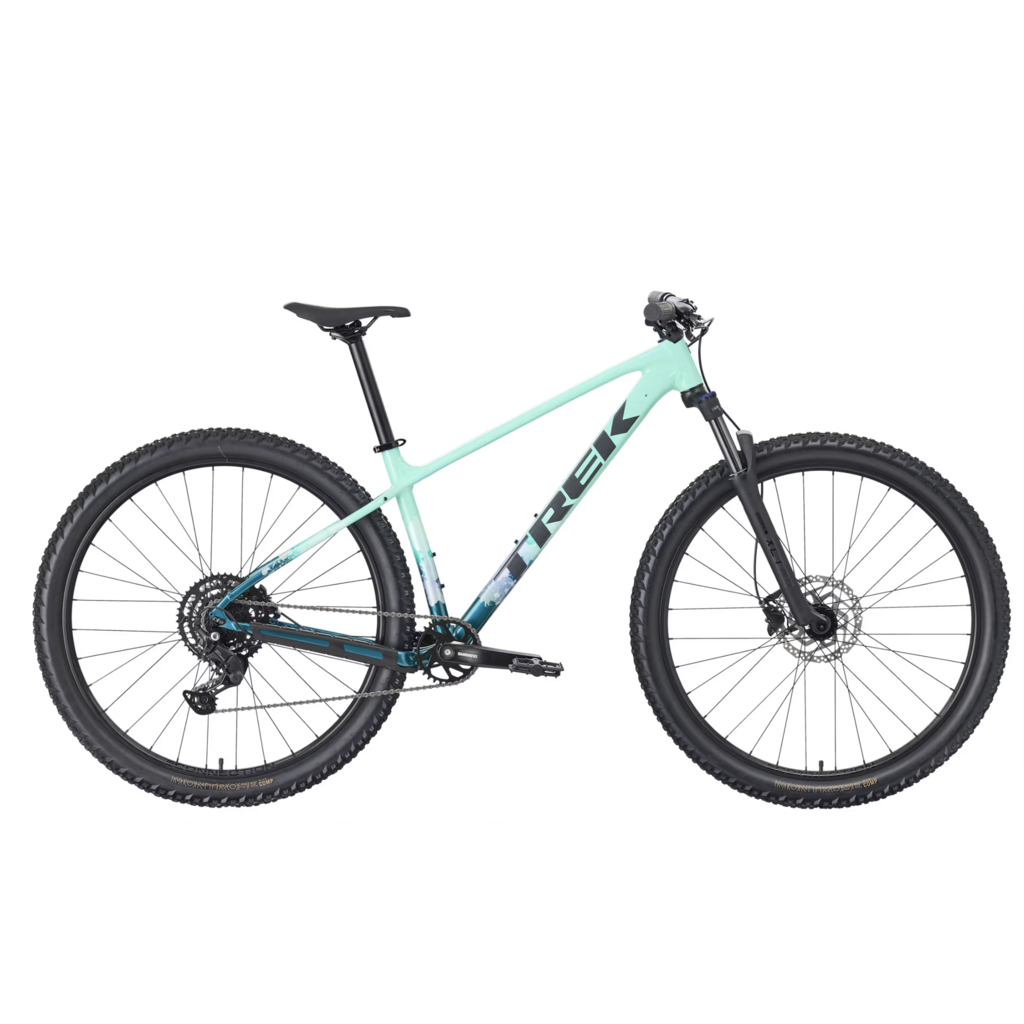

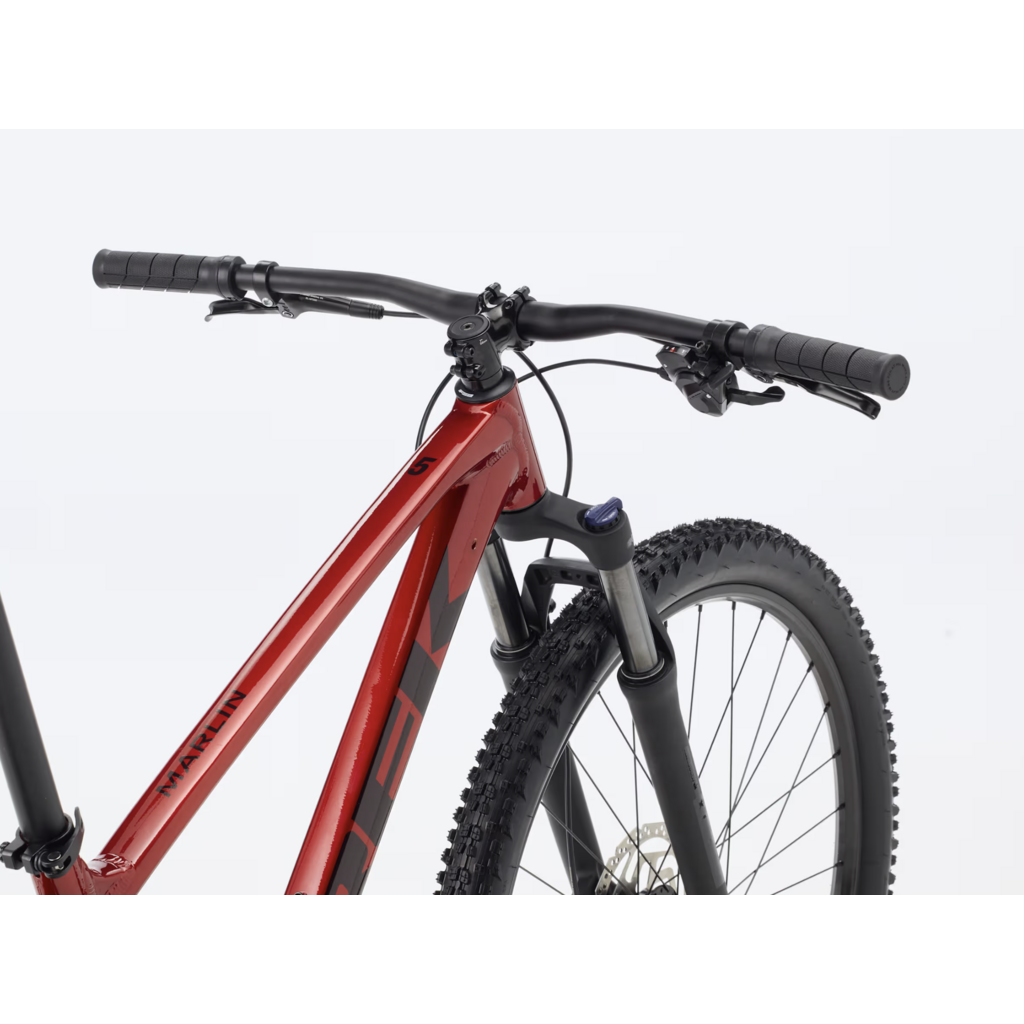

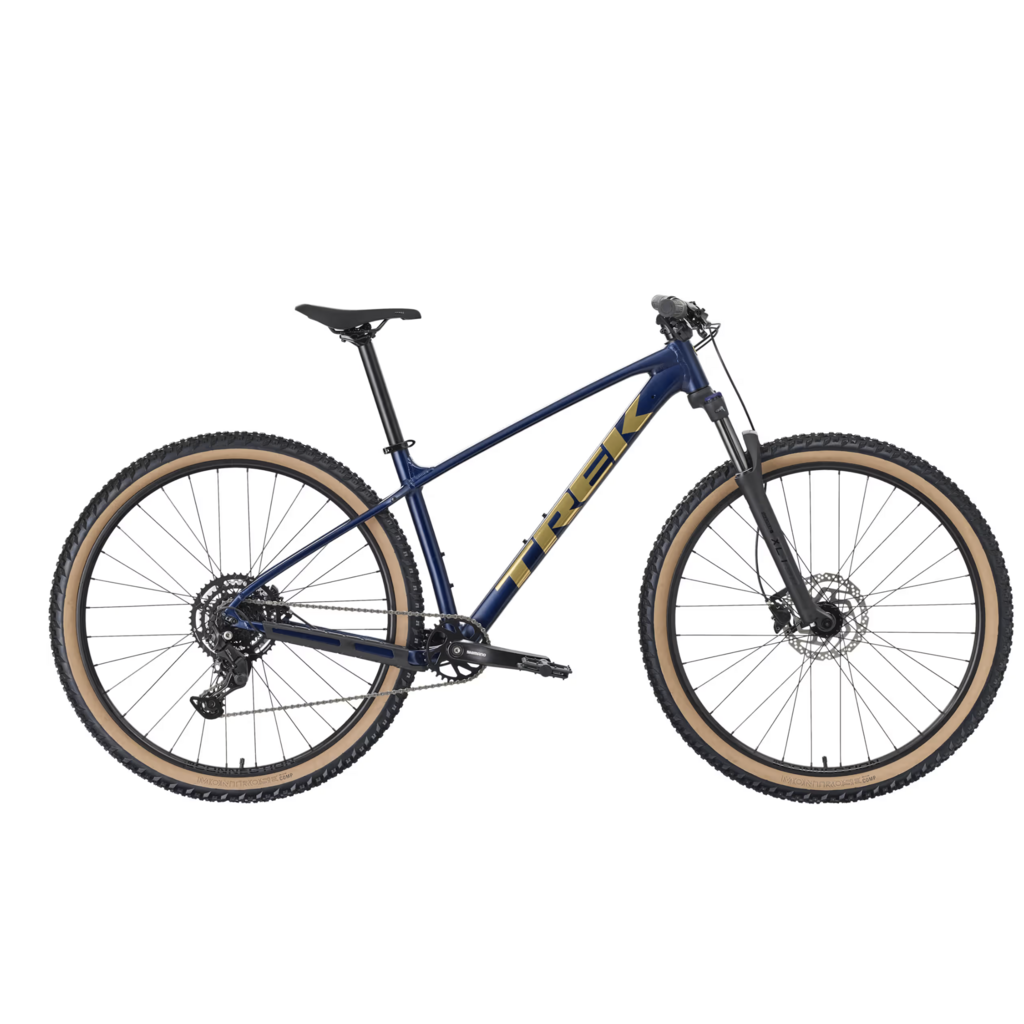

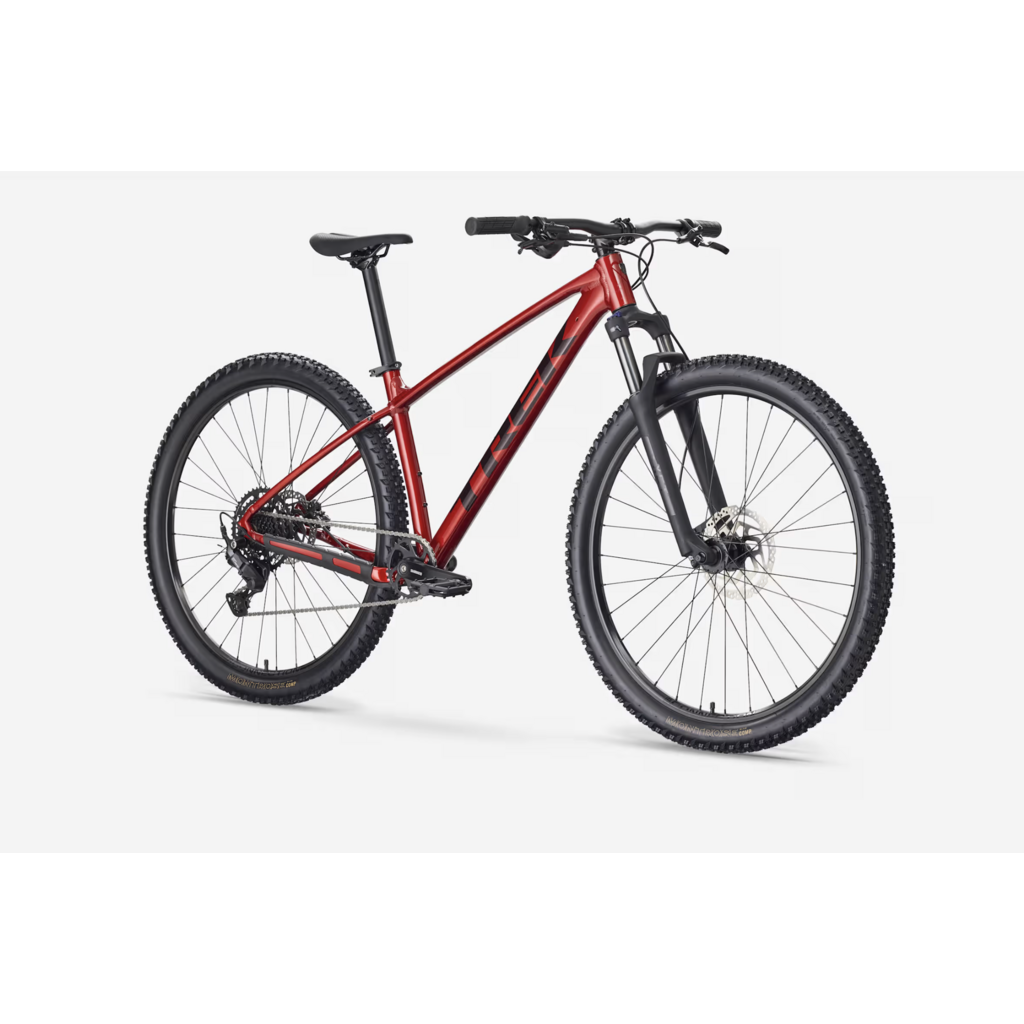

Trek 2026 Marlin 5

Frameset

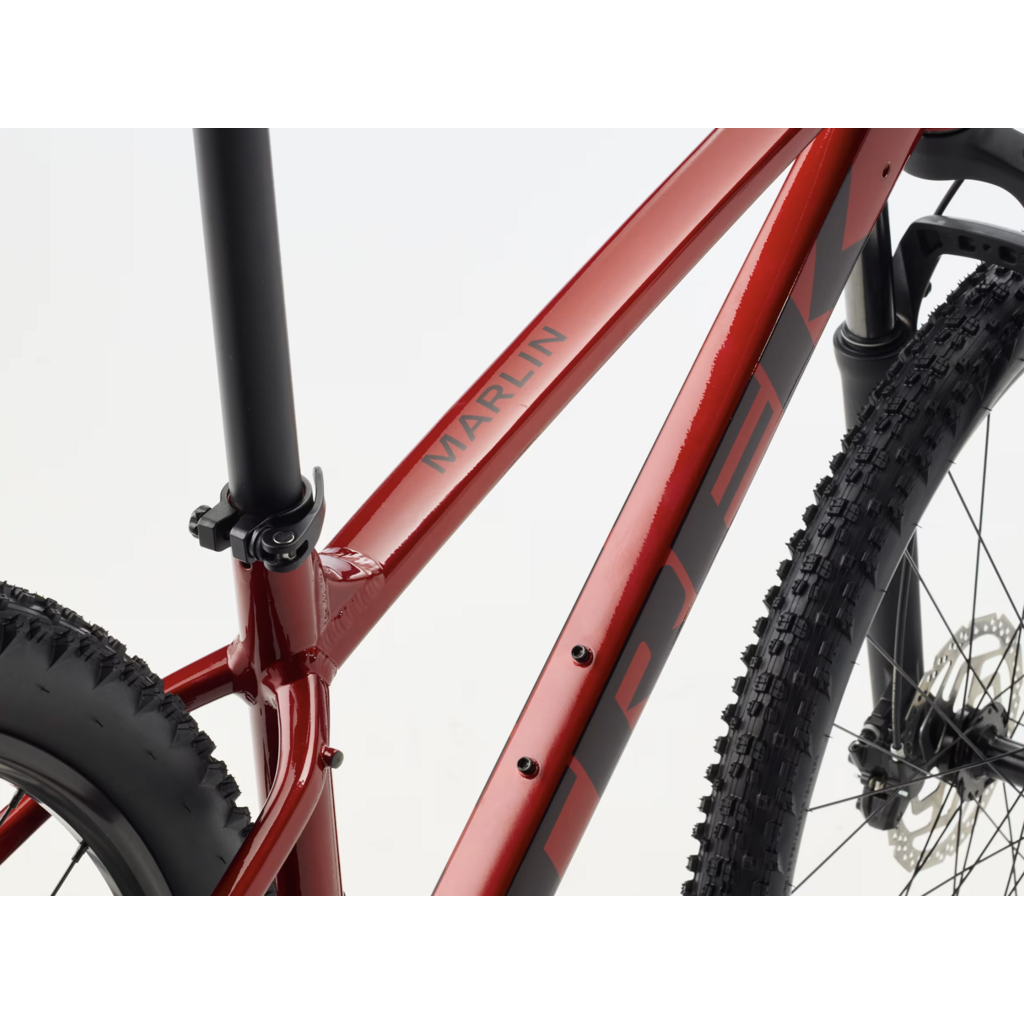

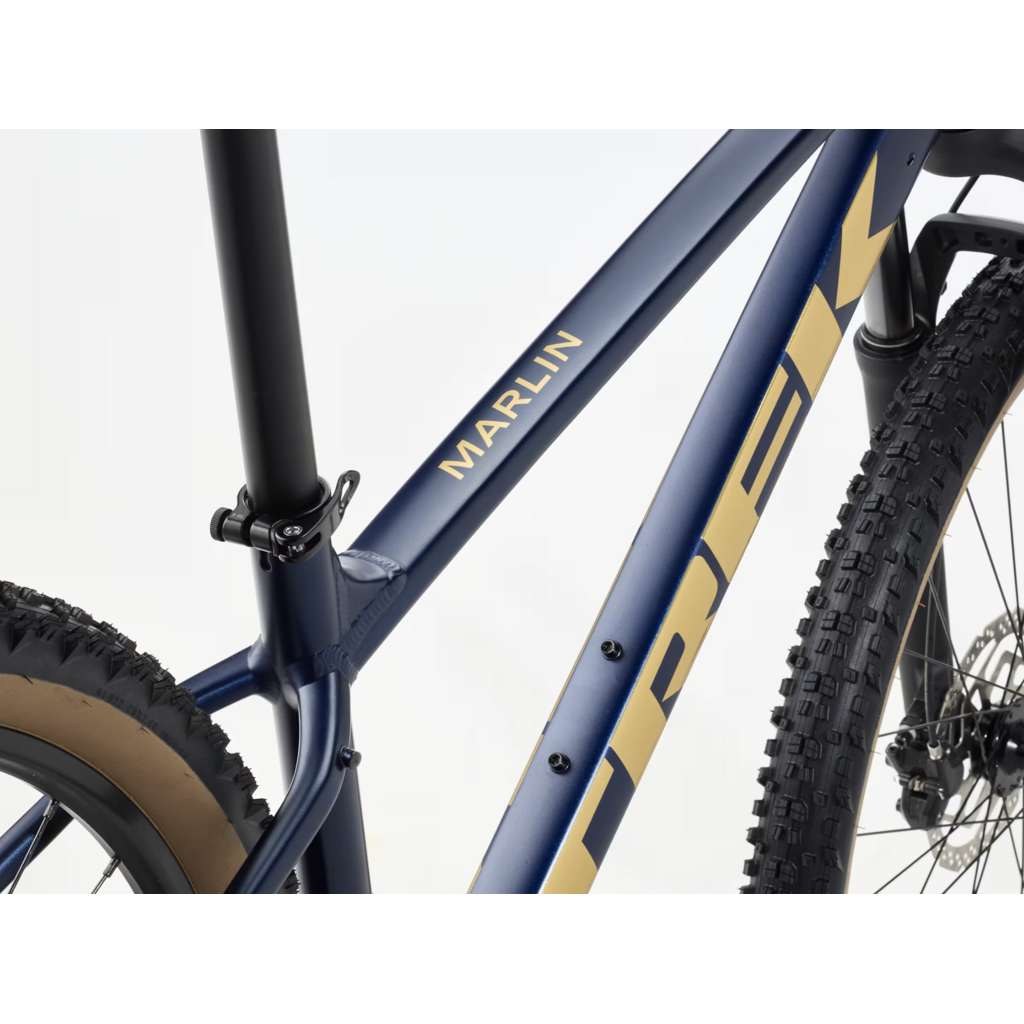

*Frame

Size: XS
Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
Size: S , M , ML , L , XL , XXL
Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew

*Fork

Size: XS
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel
Size: S
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
Size: M , ML , L , XL , XXL
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 29" wheel, 100 mm QR, 100 mm travel

Wheels

Hub front

Formula DC-20, alloy, 6-bolt, 100x5 mm

Skewer front

Trek Thru-Skew

Hub rear

Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm

Skewer rear

173x5 mm QR

Rim

Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve

Spokes

14 g stainless steel, black

*Tyre

Size: XS , S
Bontrager Montrose Comp, wire bead, 30 tpi, 27.5x2.40"
Size: M , ML , L , XL , XXL
Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.40"

Drivetrain

Shifter

Shimano U4000, 9-speed

Rear derailleur

Shimano CUES U4000

*Crank

Size: XS , S , M , ML
Shimano CUES U4001, 32T, 52mm chain line, 170 mm length
Size: L , XL , XXL
Shimano CUES U4001, 32T, 52mm chain line, 175mm length

Bottom bracket

Shimano, 73 mm, threaded cartridge, 122.5 mm spindle

Cassette

Shimano LINKGLIDE LG300, 11-46, 9-speed

Chain

Shimano LG500

Pedal

VP-536 nylon platform

Components

Saddle

Bontrager Verse Short, stainless steel rails

*Seatpost

Size: XS , S , M
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
Size: ML , L , XL , XXL
Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length

*Handlebar

Size: XS
Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
Size: S
Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
Size: M , ML , L , XL , XXL
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width

Grips

Trek Line Comp, nylon lock-on

*Stem

Size: XS , S
Bontrager Comp, 31.8 mm, 7-degree, 35 mm length
Size: M , ML , L
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
Size: XL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length
Size: XXL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length

Head set

Semi-integrated, 1-1/8"

Brake

Shimano MT200 hydraulic disc

*Brake rotor

Size: XS , S , M , ML , L , XL , XXL
Shimano RT26, 6-bolt, 160 mm
Size: M , ML , L , XL , XXL
Shimano RT26, 6-bolt, 180 mm

Brake Set

Shimano MT200 hydraulic disc

Weight

Weight

M - 15.10 kg / 33.29 lbs

Weight limit

This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
