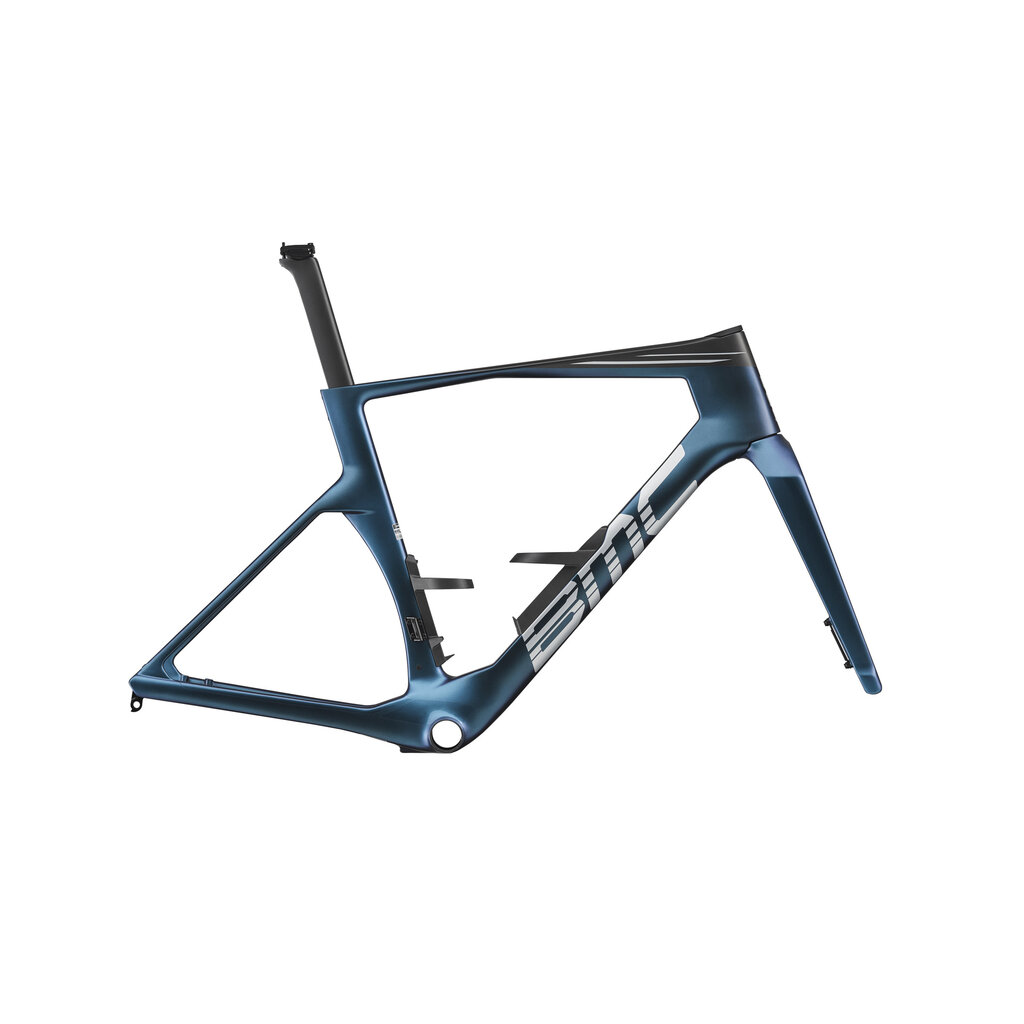

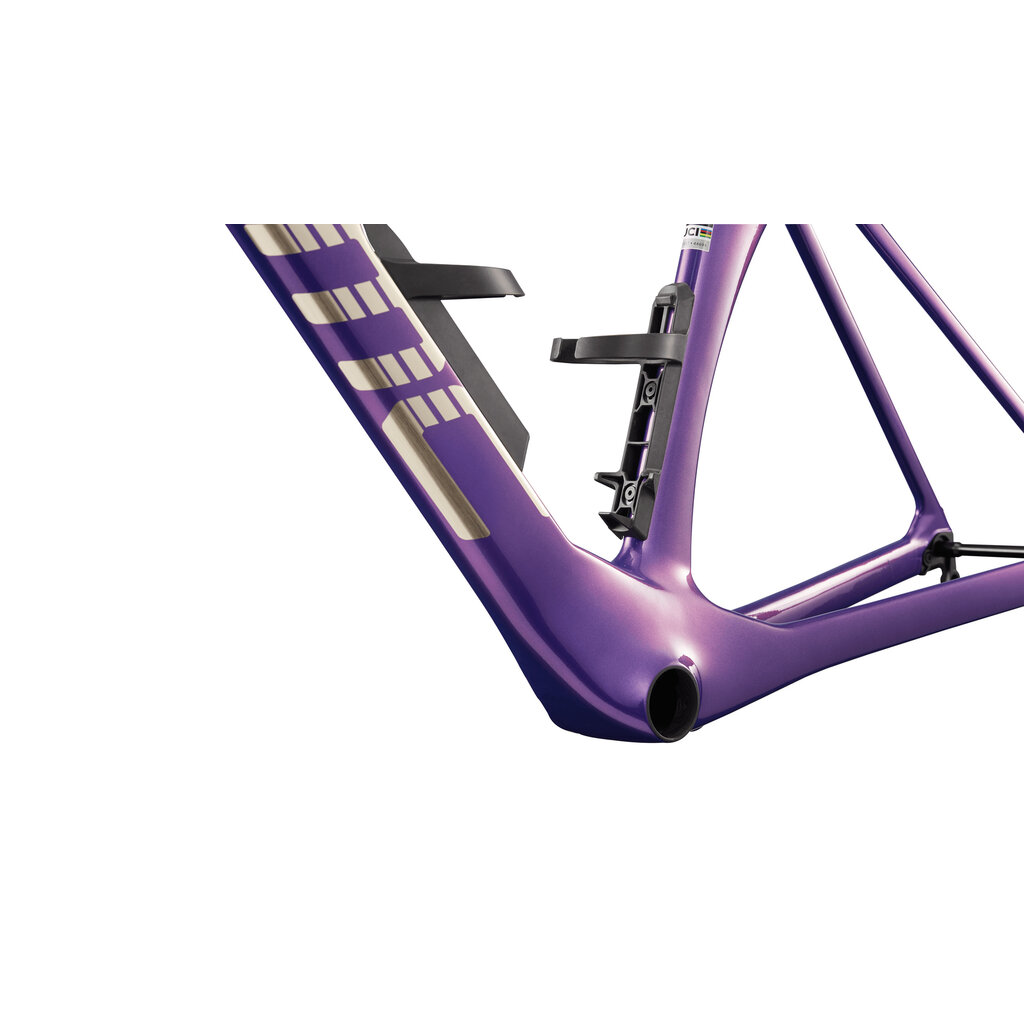

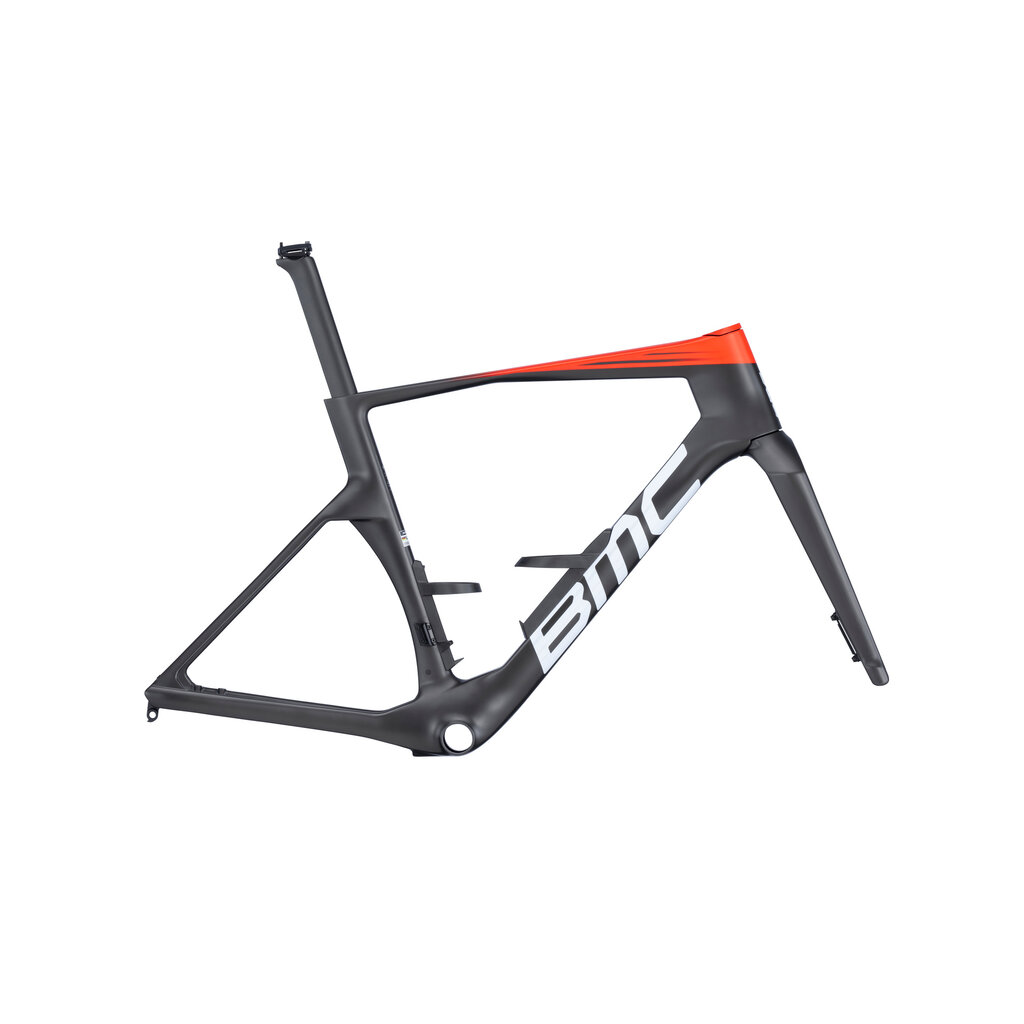

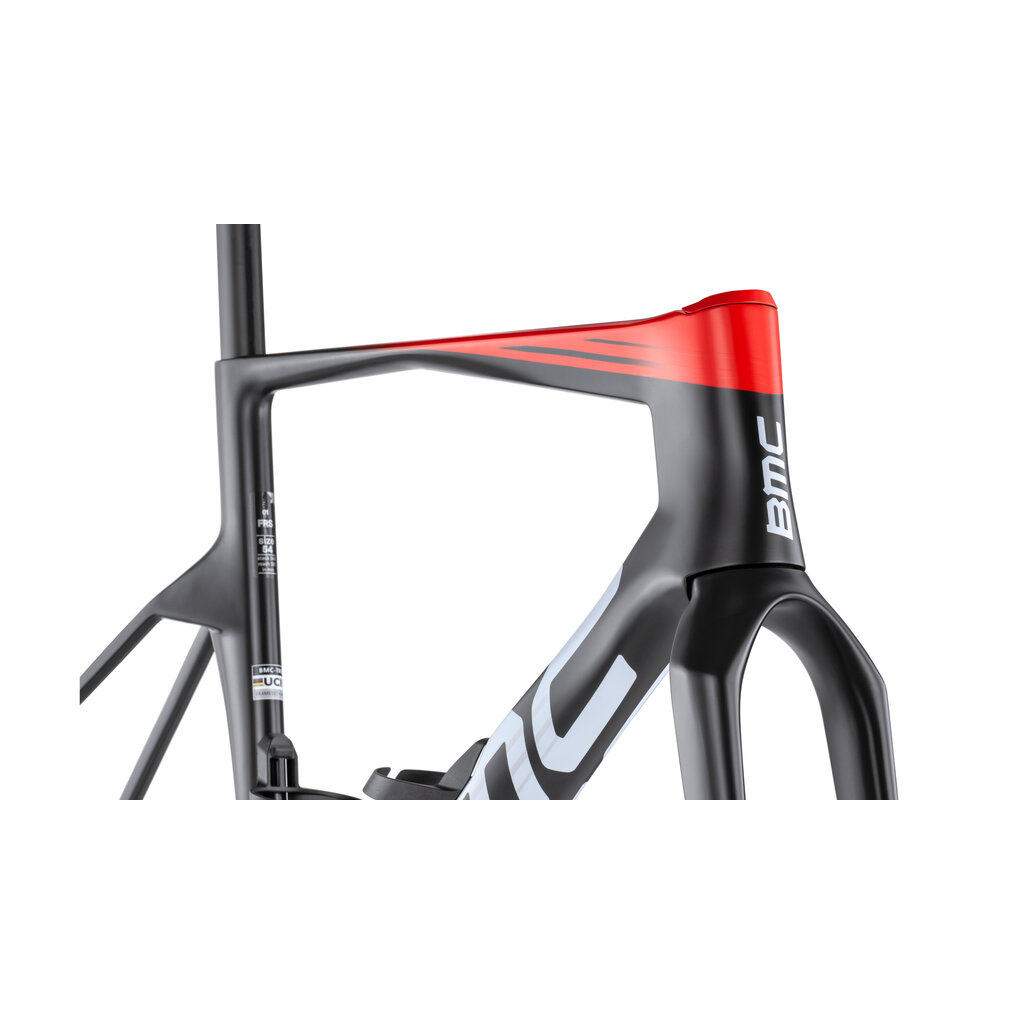

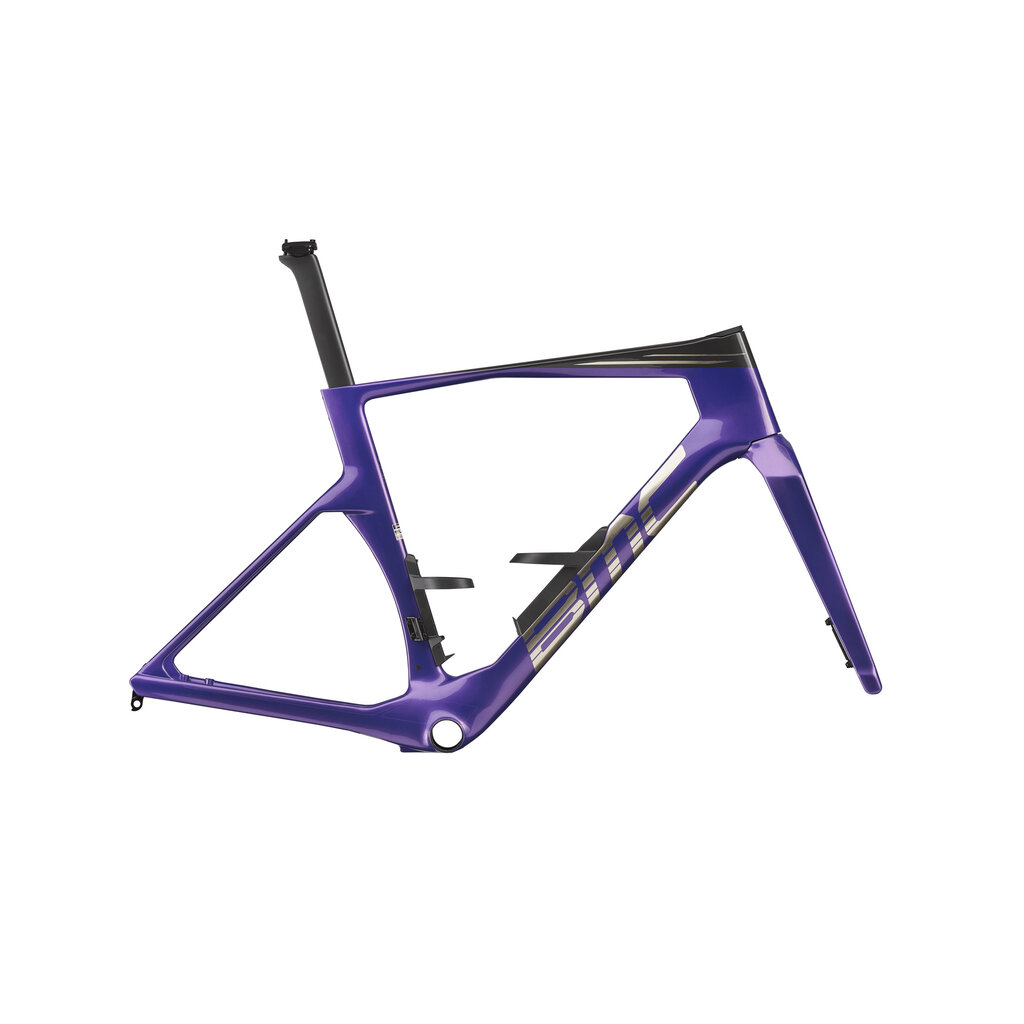

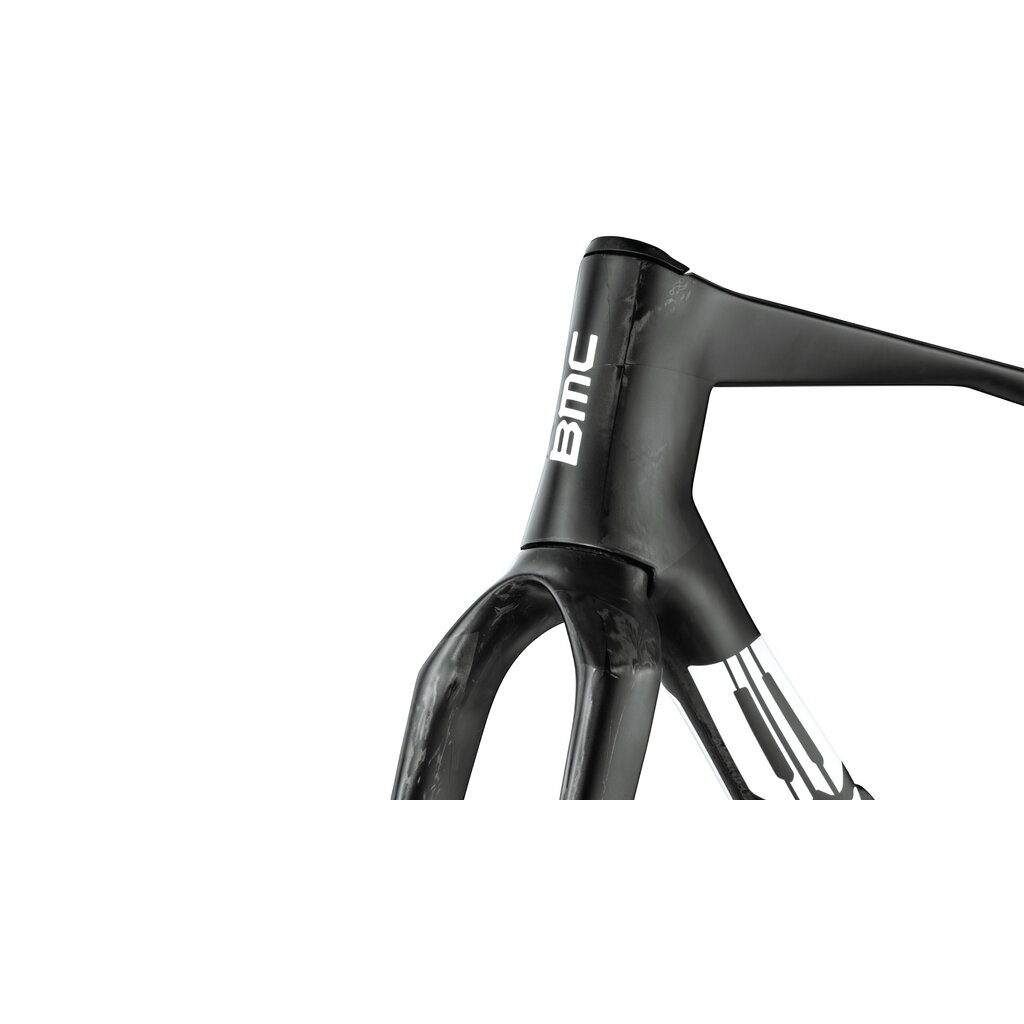

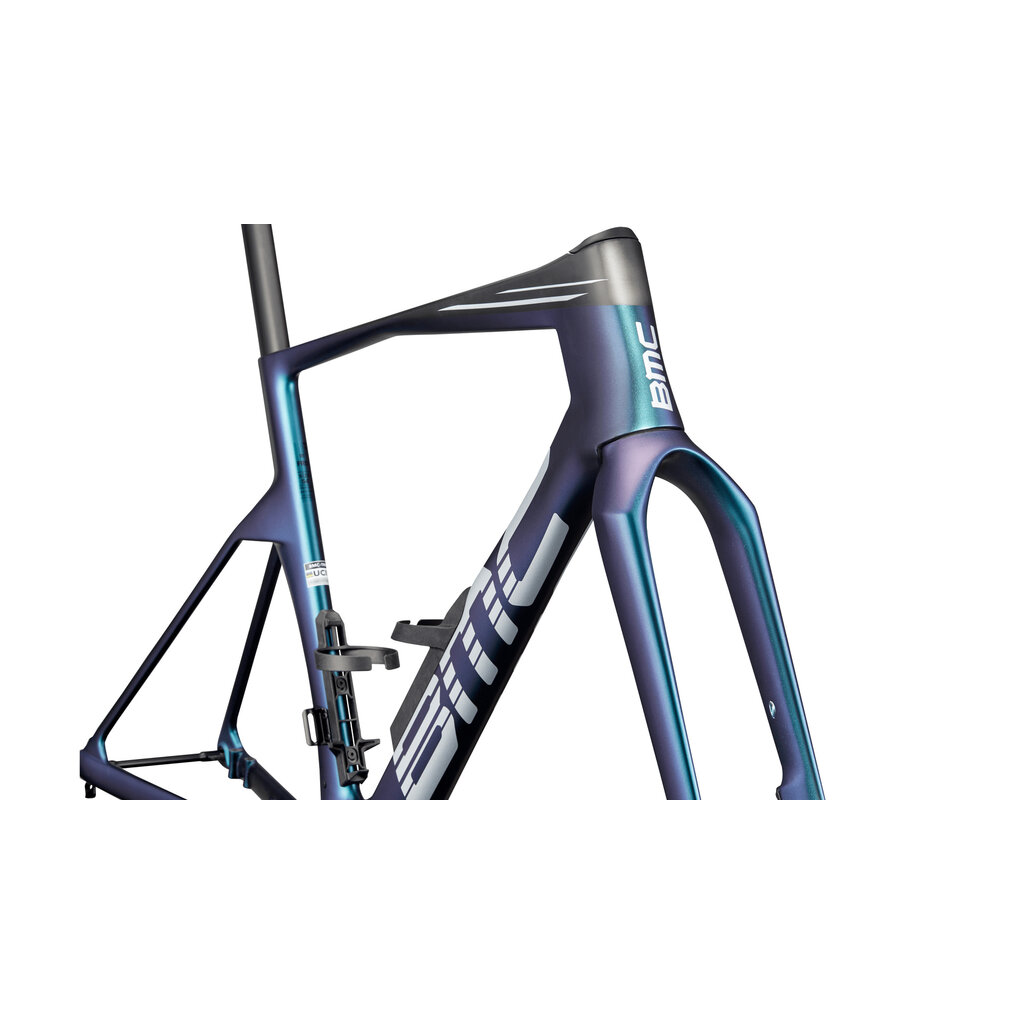

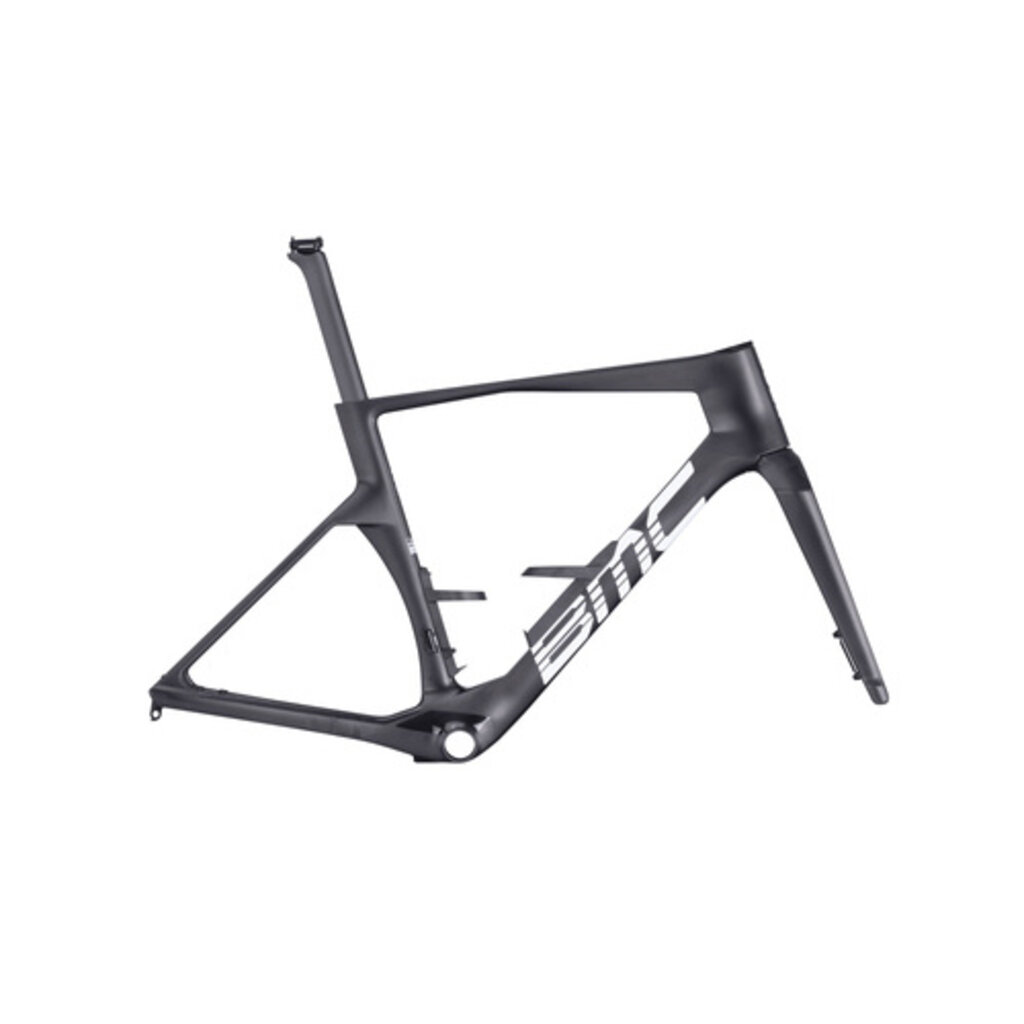

Frame:
Teammachine R 01 | 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 142mm Thru-Axle
Fork:
Teammachine R 01 | 01 Premium Carbon | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle
Seatpost:
Teammachine R 01 | 01 Premium Carbon Seatpost | 0mm Offset Size 47-51 and 10mm Offset Size 54-61
Front Derailleur:
Riveted derailleur hanger for Front Derailleur (2x drivetrain - 44.5mm chainline)
Rear Derailleur:
BMC derailleur hangers: SHIMANO Direct Mount + SHIMANO or SRAM Direct Attachement (standard)
Bottom Bracket:
Press-Fit 86.5mm Road
Rotor Size (F/R):
Rotor compatibility: 160mm front | 140mm or 160mm rear
In the Box:
Aerocore Bottle Cages | Shimano Direct Mount derailleur hanger | Classic SRAM/Shimano derailleur hanger | High and low ICS top cones, 3x10mm spacers , 2x3mm spacers
Tire Clearance:
30mm measured tire
Weight without Pedals:
1810g | Size 54 as pictured with all accessories
ASTM Classification:
Level 1
System Weight Limit:
110kg
