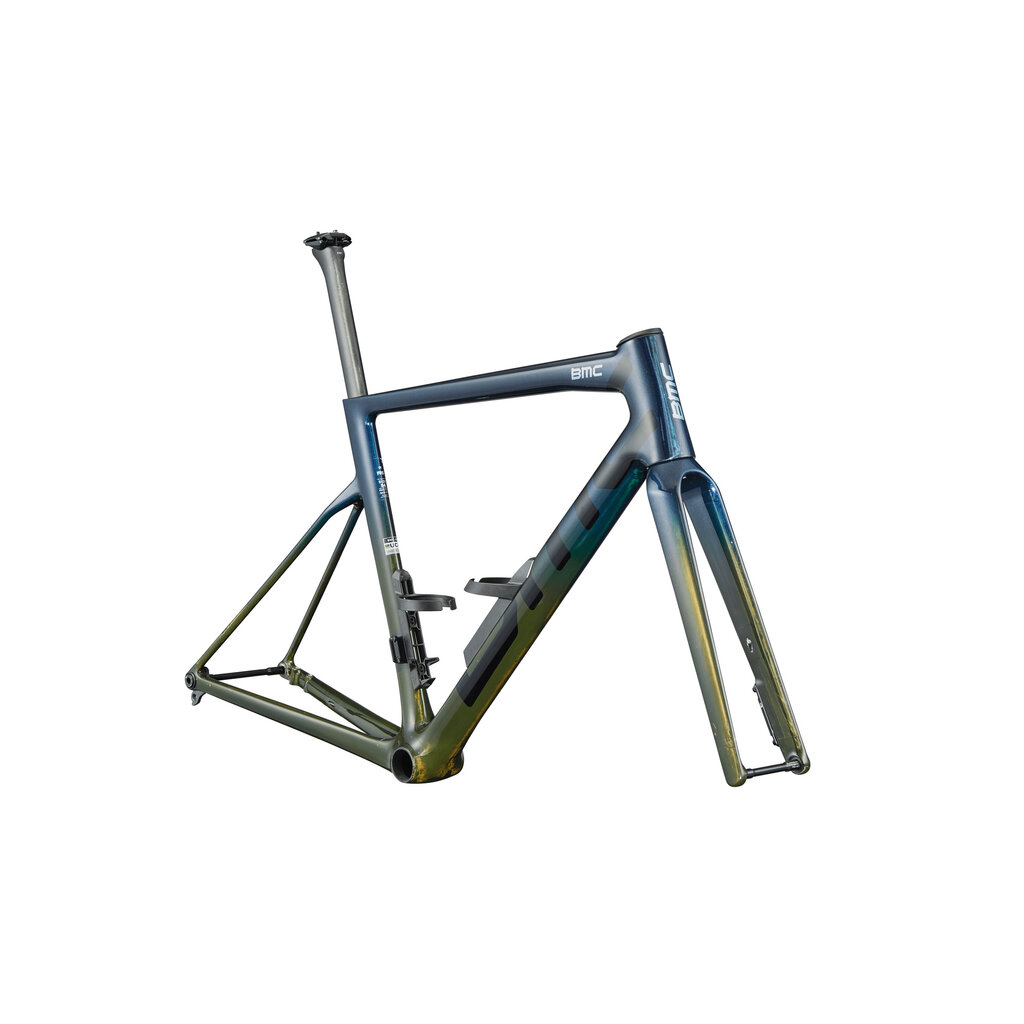

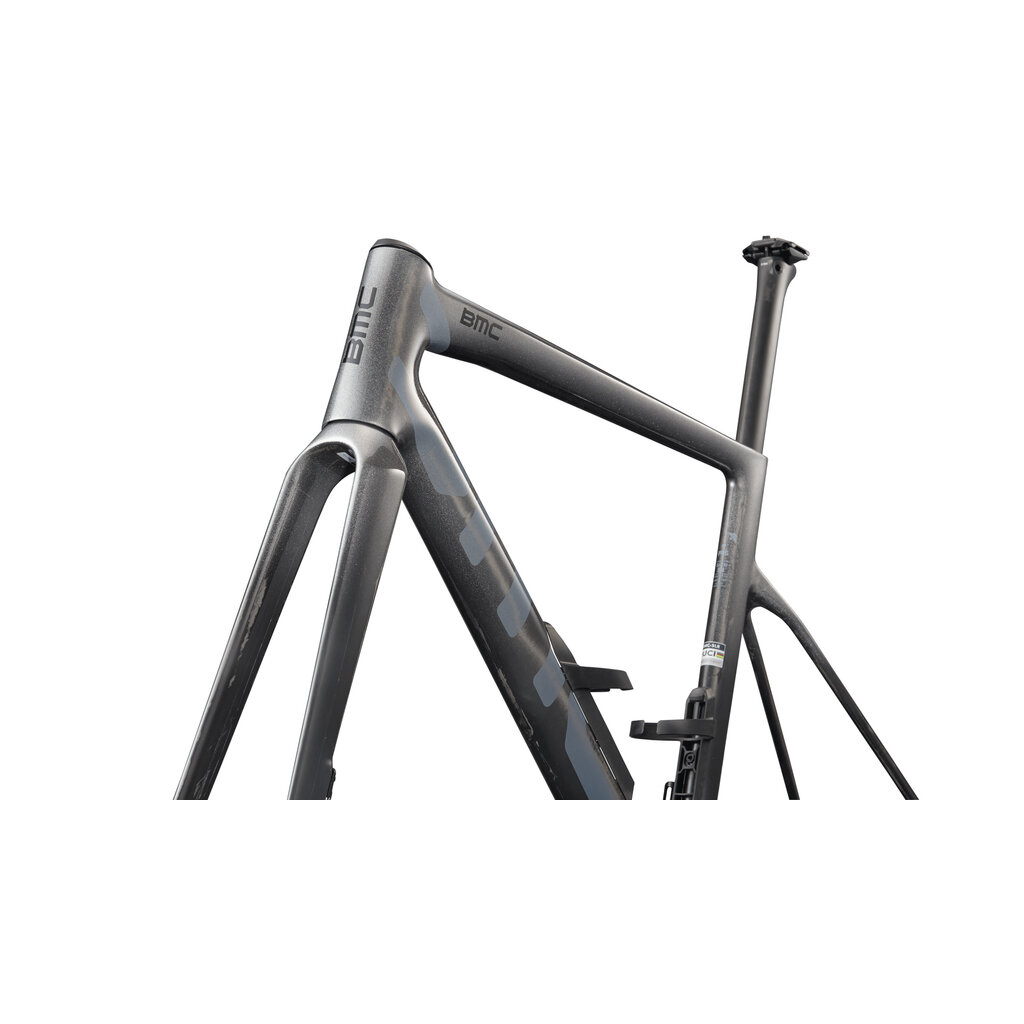

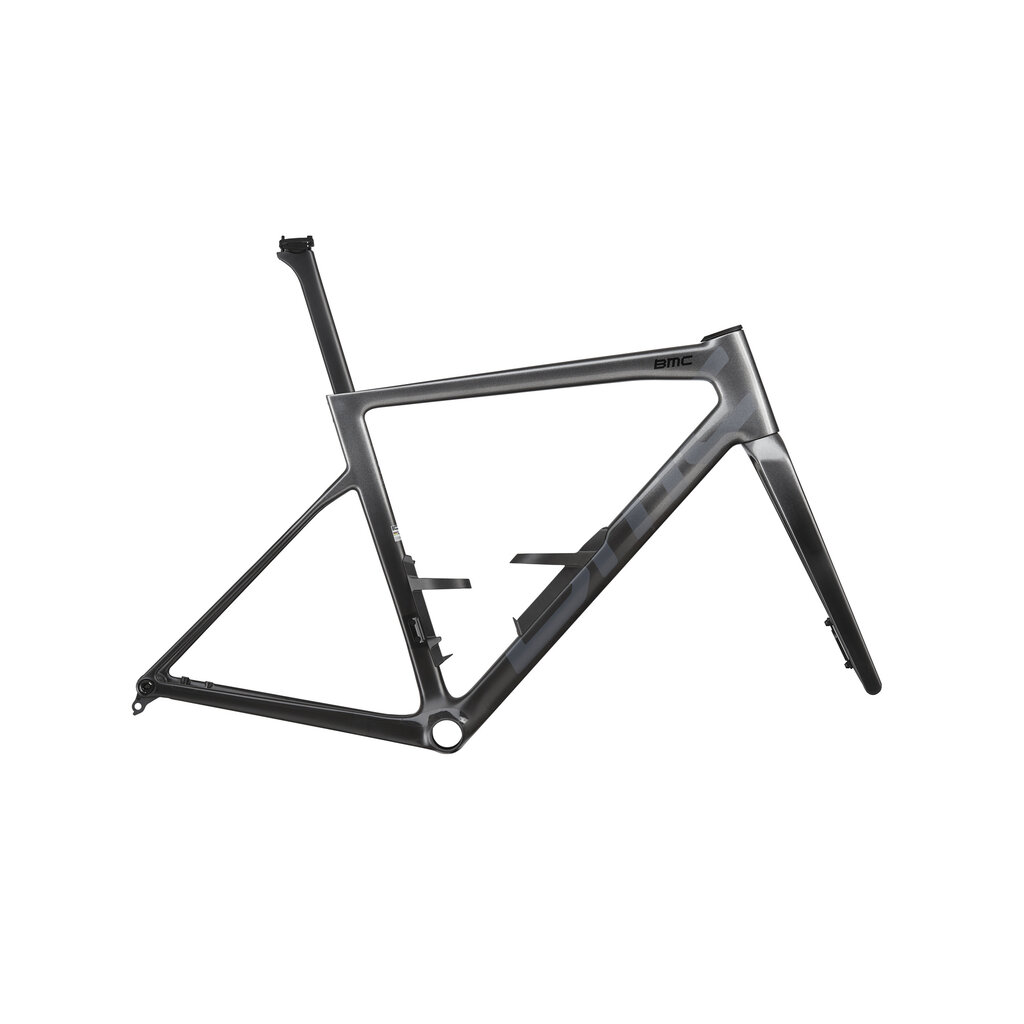

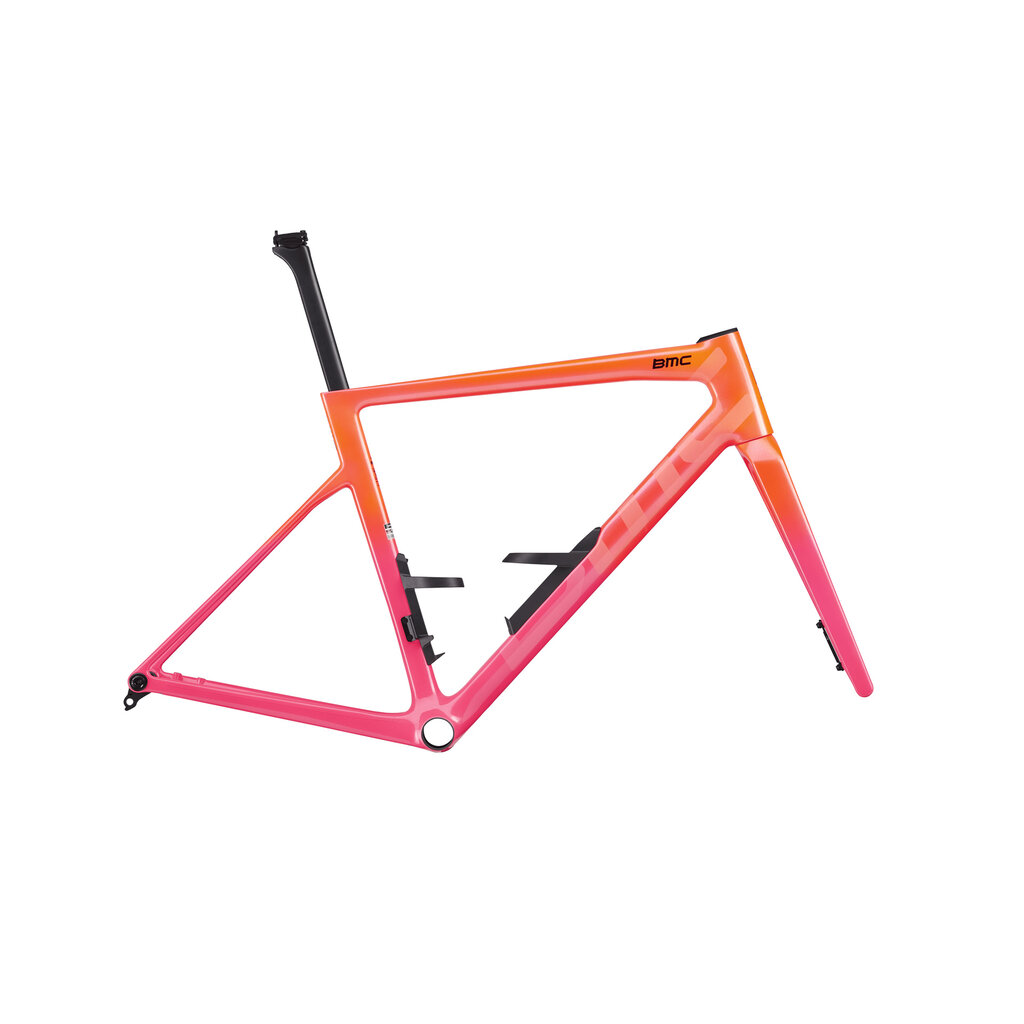

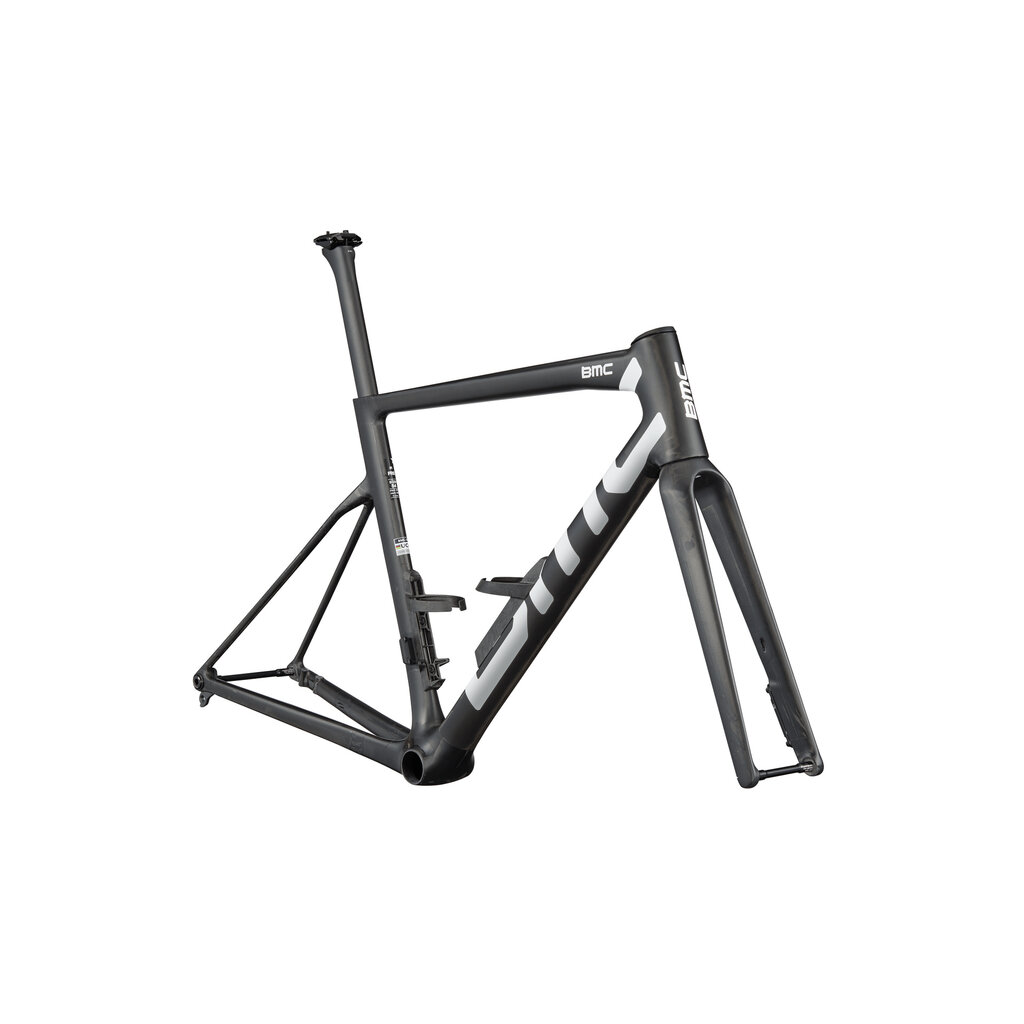

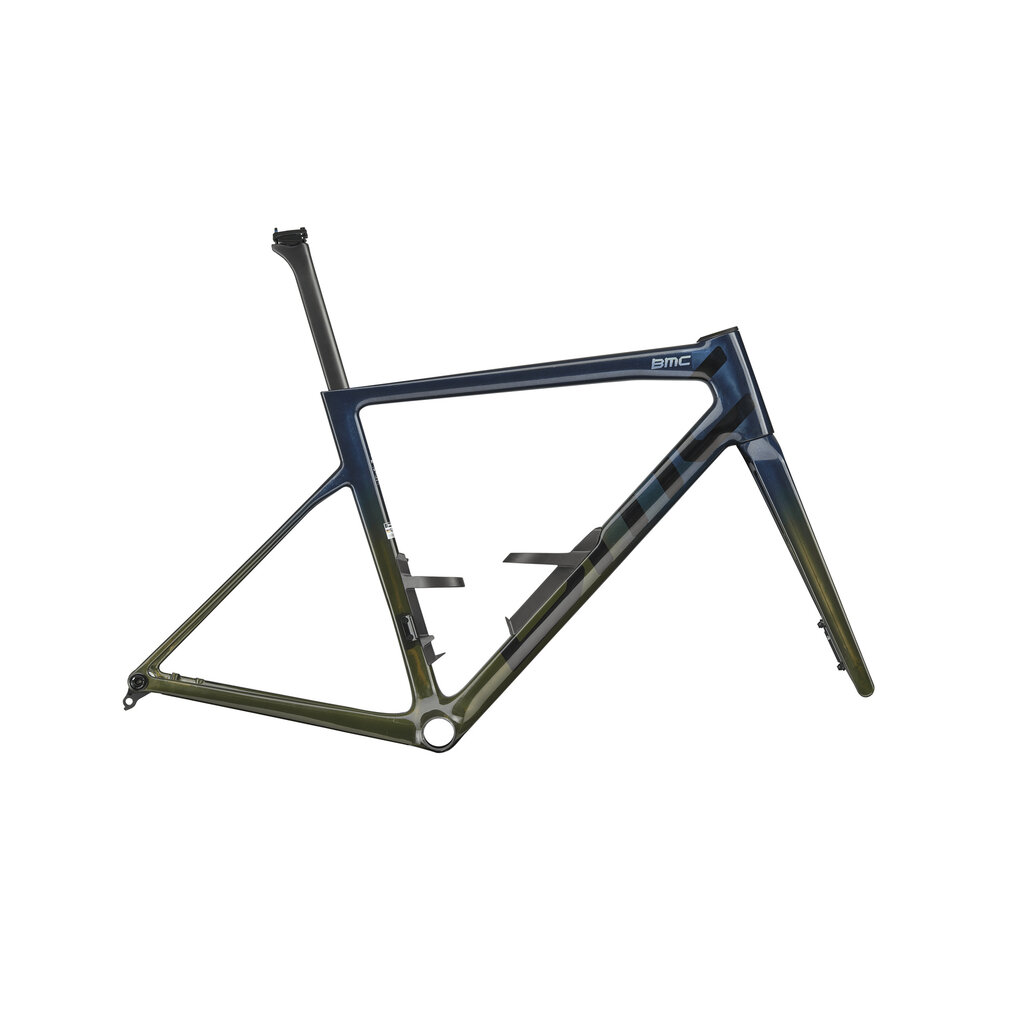

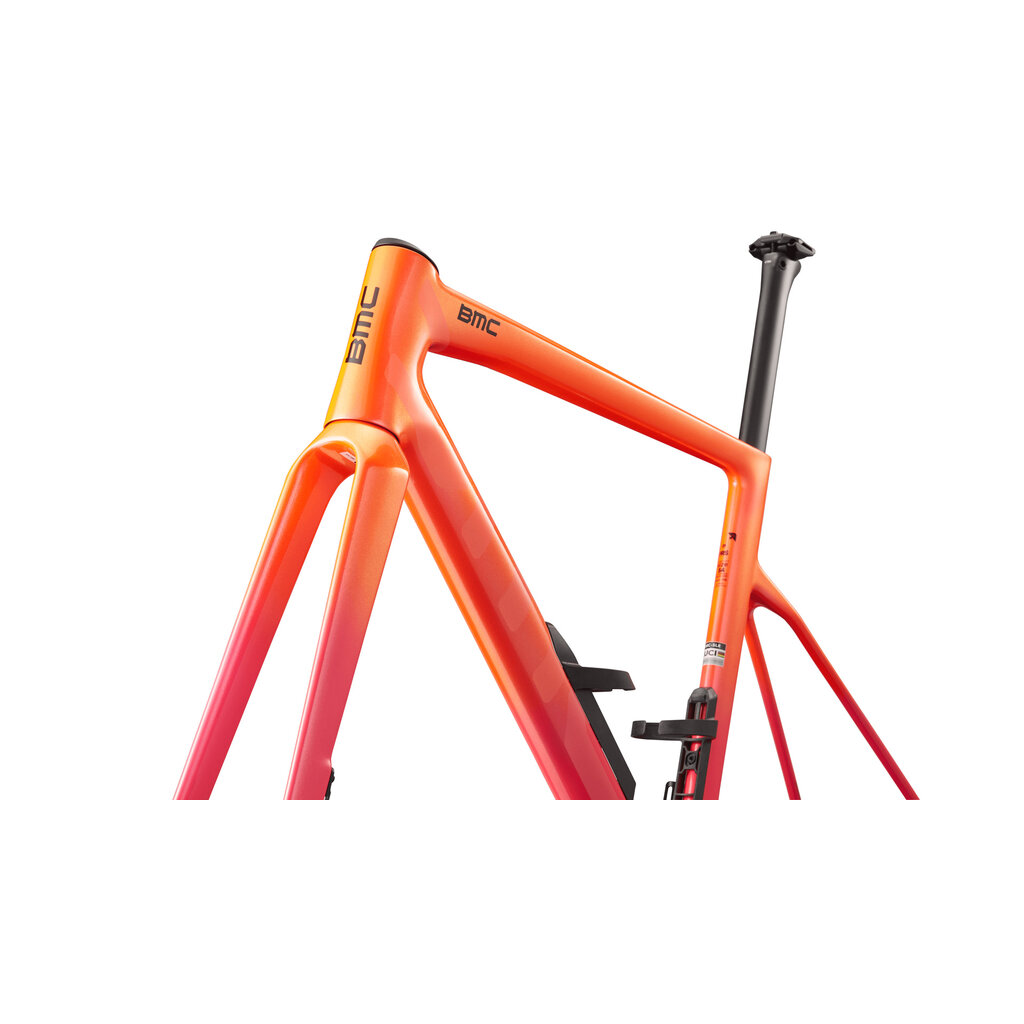

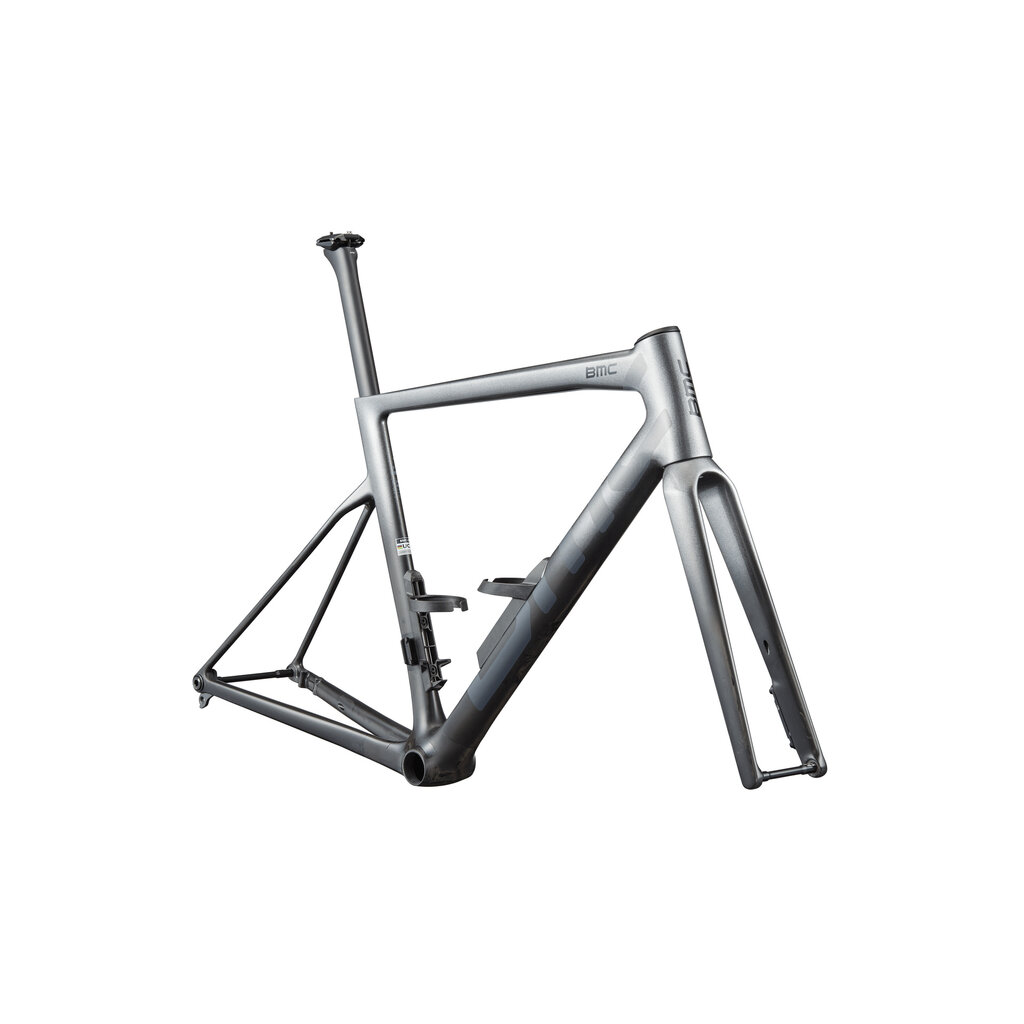

Frameset
Frame:
Teammachine SLR 01 Gen 5 | 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Full Mount - UDH | TCC Race Compliance Level | Flat Mount Disc | 12 x 142mm Thru-Axle
Fork:
Teammachine SLR 01 Gen 5 | 01 Premium Carbon | ICS Technology Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle | 48mm offset Size 47-51 43mm offset Size 54-61
Seat
Seatpost:
Teammachine SLR 01 Gen 5 | 01 Premium Carbon Aero Shaped Seatpost | 0mm Offset Size 47-51 and 10mm Offset Size 54-61
Drivetrain
Front Derailleur:
Derailleur hanger for Front Derailleur (2x drivetrain - 44.5mm chainline), and Cover (1x drivetrain)
Rear Derailleur:
Full Mount - UDH
Bottom Bracket:
Press-Fit 86.5mm Road
Brakes
Rotor Size (F/R):
Rotor compatibility: 160mm front | 140mm or 160mm rear
Accessories
In the Box:
Aerocore Bottle Cages | SRAM UDH derailleur hanger | SHIMANO Direct Mount derailleur hanger | High and low ICS top cones, 3x10mm spacers , 2x3mm spacers
Additional Information
Tire Clearance:
32mm measured tire
Weight without Pedals:

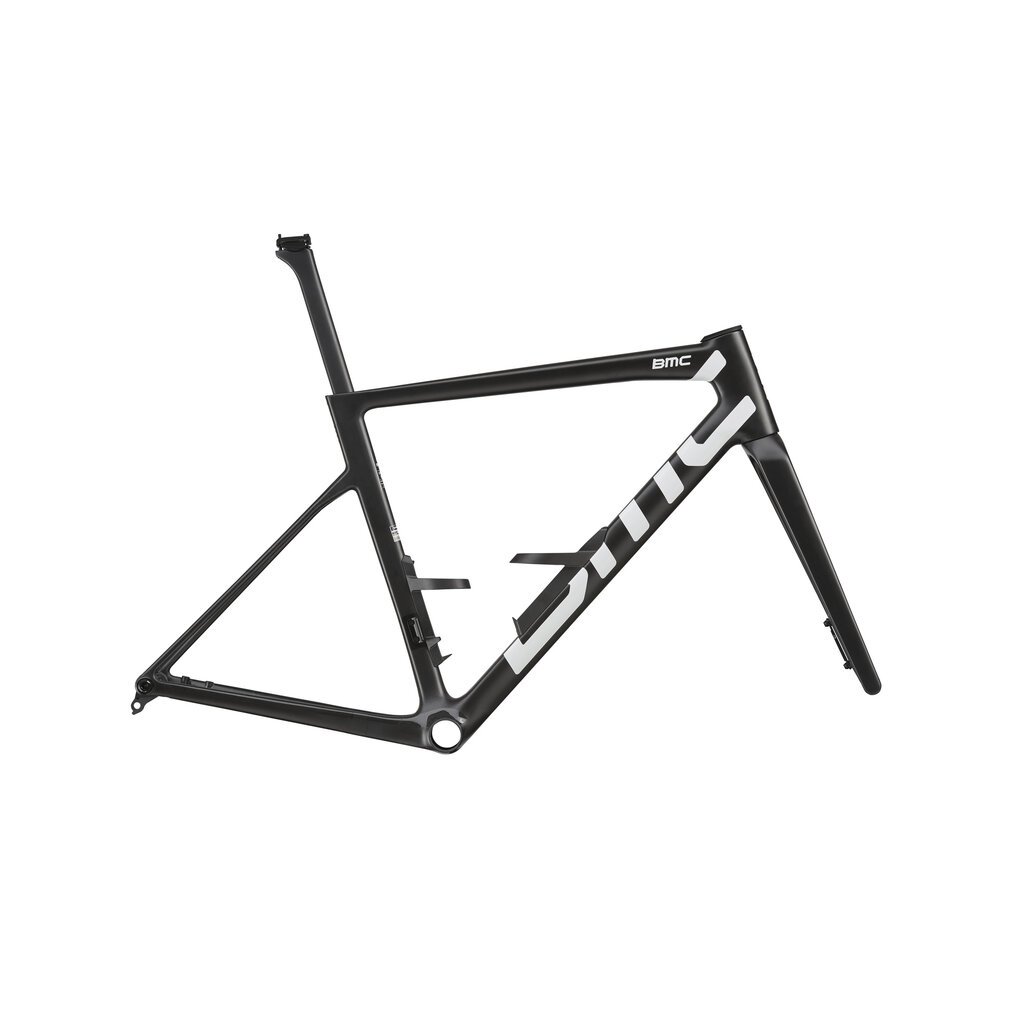

1565g | Size 54 as pictured with all accessories
ASTM Classification:
Level 1
System Weight Limit:
110kg
