Frameset
Frame:
Teammachine SLR 01 Gen 5 | 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Full Mount - UDH | TCC Race Compliance Level | Flat Mount Disc | 12 x 142mm Thru-Axle
Fork:
Teammachine SLR 01 Gen 5 | 01 Premium Carbon | ICS Technology Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle | 48mm offset Size 47-51 43mm offset Size 54-61
Cockpit
Handlebar:
ICS Carbon Aero Gen 2 | One-Piece Full Carbon Cockpit | 135mm drop, 81mm reach, 12° flare
Grips:
BMC Tacky 3mm
Seat
Seatpost:
Teammachine SLR 01 Gen 5 | 01 Premium Carbon Aero Shaped Seatpost | 0mm Offset Size 47-51 and 10mm Offset Size 54-61
Saddle:
Fizik Vento Argo R1 Lite | Carbon rail | 140mm
Drivetrain
Crankset:
SHIMANO Dura Ace (FC-R9200)
Chainrings:
52-36T
Power Meter:
4iiii Precision Gen3+ Power Meter (Dual Side)
Cassette:
SHIMANO Dura Ace (CS-R9200)
Cassette Size:
11-34T
Chain:
SHIMANO CN-M9100
Front Derailleur:
SHIMANO Dura Ace Di2 (FD-R9250)
Rear Derailleur:
SHIMANO Dura Ace Di2 (RD-R9250)
Shifters:
SHIMANO Dura Ace Di2 (ST-R9270)
Gears:
2 x 12
Bottom Bracket:
SHIMANO Dura Ace Press-Fit Bottom Bracket (SM-BB92-41B)
Brakes
Brake Levers / Calipers:
SHIMANO Dura Ace (BR-R9270)
Rotors:
SHIMANO Dura Ace (RT-CL900)
Rotor Size (F/R):
160 / 160mm
Wheels
Rims:
DT Swiss ARC 1100 DICUT | 38mm
Hubs (F/R):
DT Swiss 180 DICUT | Ratchet EXP 36
Tires:
Pirelli P Zero Race RS | Tube type | 28mm
Tubeless Information:
Tubeless Rims | Non-Tubeless Clincher Tire
Accessories
In the Box:
Aerocore Bottle Cages | Computer mount for Garmin, Wahoo and GoPro mount
Additional Information
Tire Clearance:
32mm measured tire
Weight without Pedals:

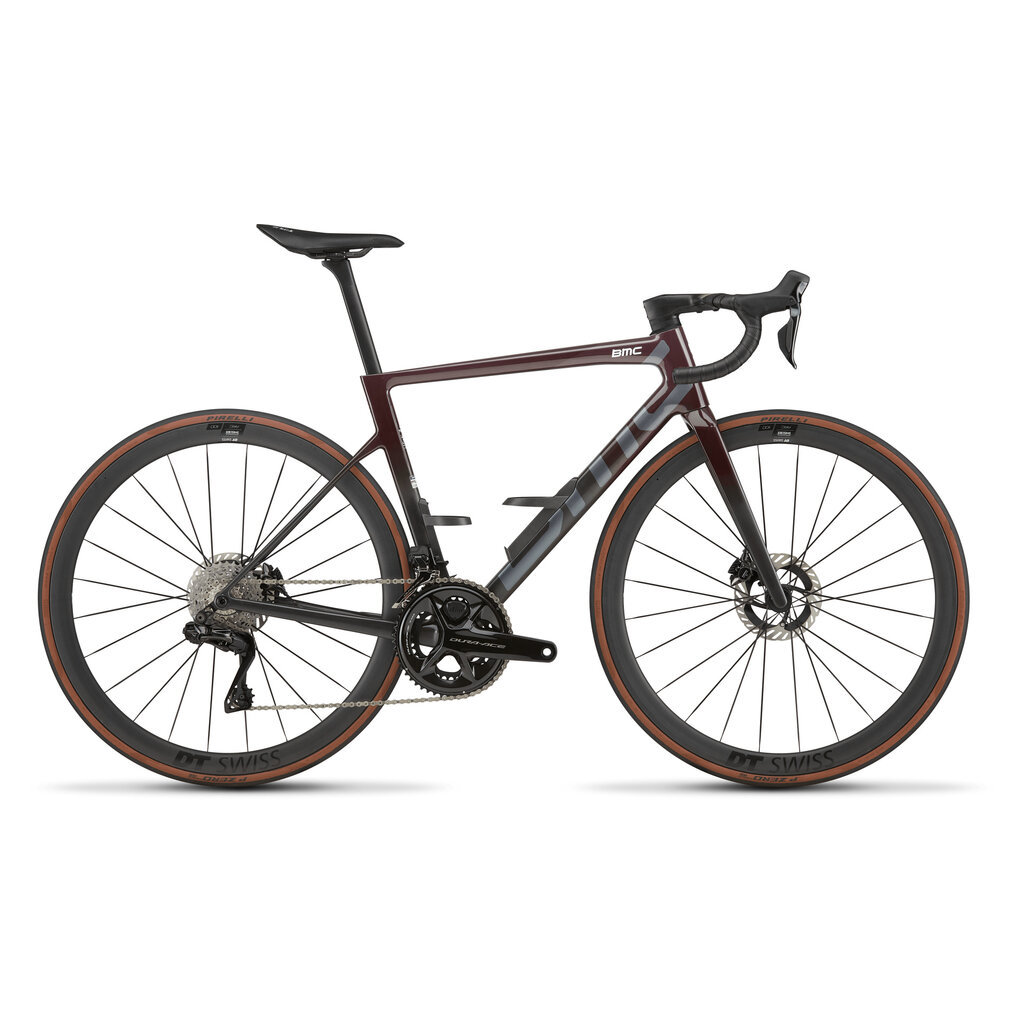

6.5kg | Size 54 as pictured with all accessories
ASTM Classification:
Level 1
System Weight Limit:
110kg
