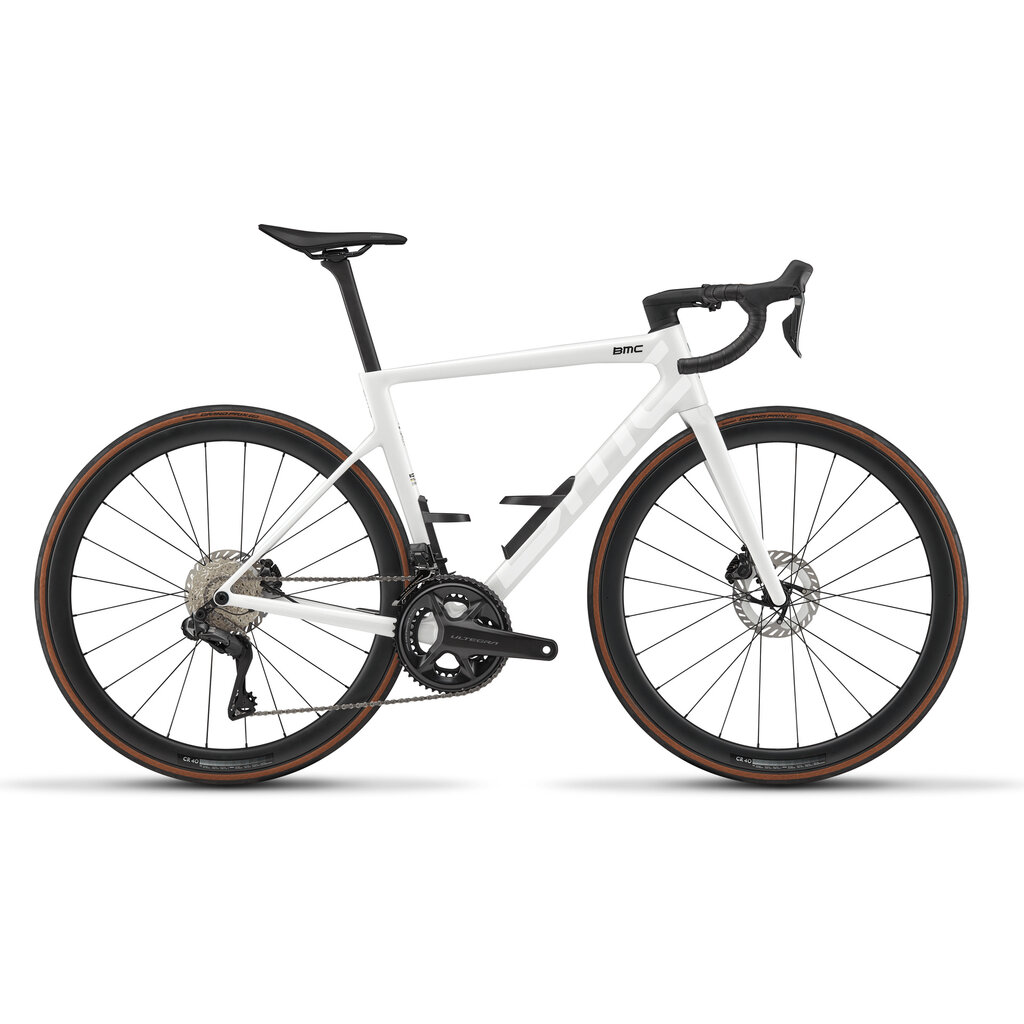

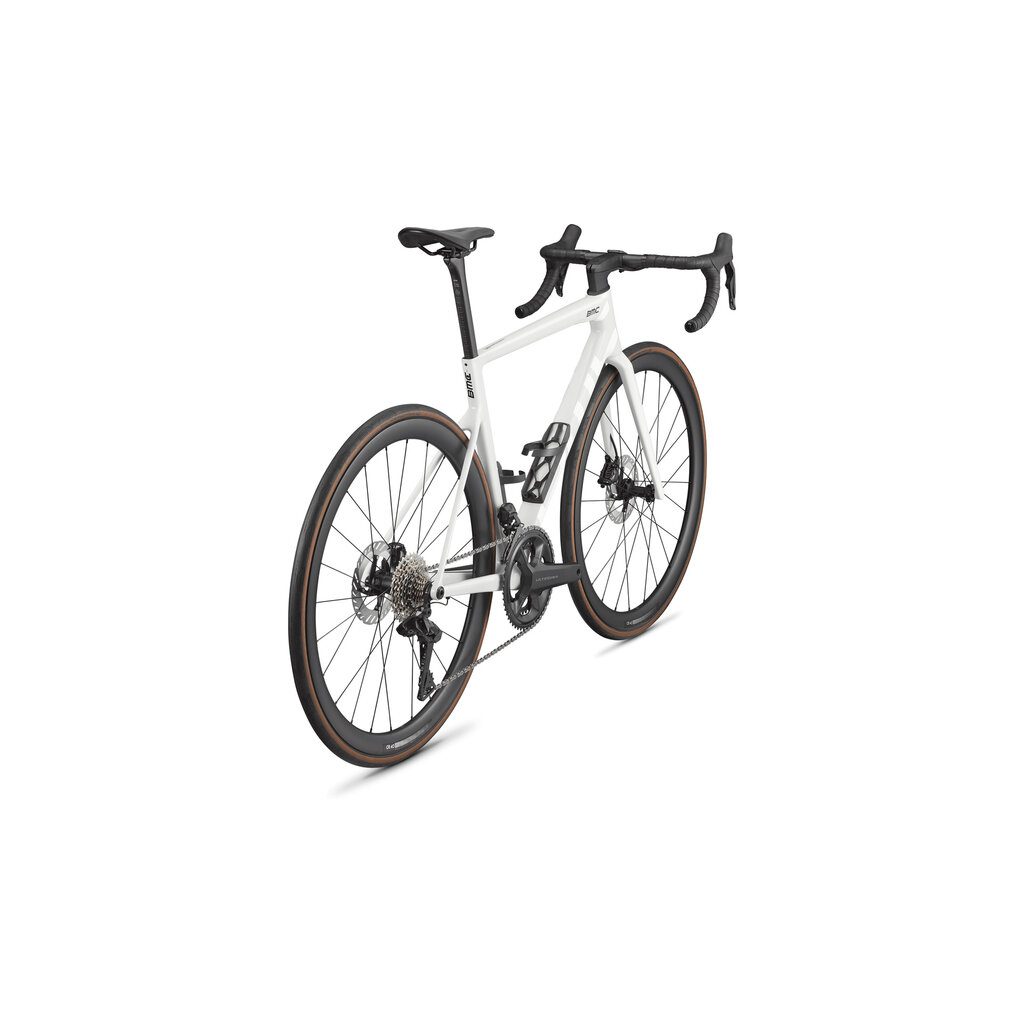

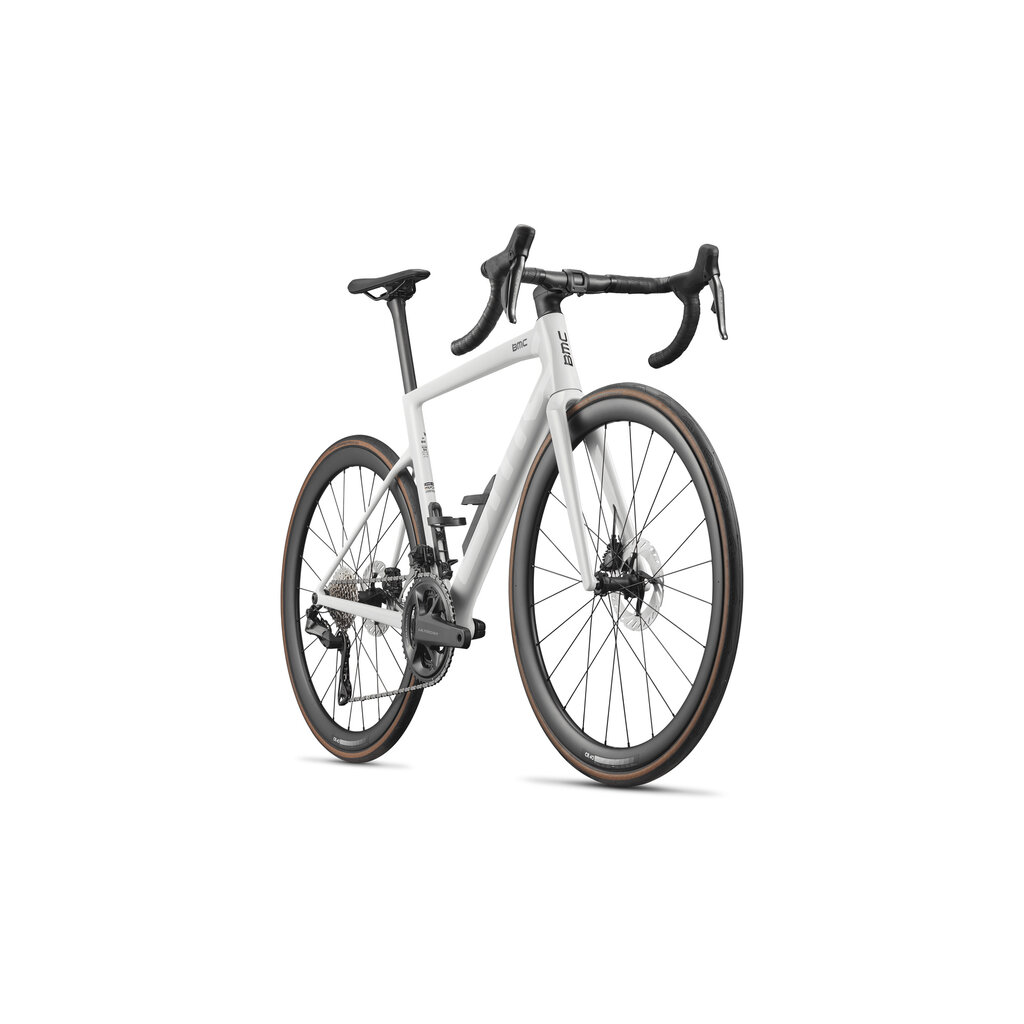

Frameset
Frame:
Teammachine SLR 01 Gen 5 | 01 Pro Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Full Mount - UDH | TCC Race Compliance Level | Flat Mount Disc | 12 x 142mm Thru-Axle
Fork:
Teammachine SLR 01 Gen 5 | 01 Pro Carbon | ICS Technology Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle | 48mm offset Size 47-51 43mm offset Size 54-61
Cockpit
Stem:
BMC ICS2 | Integrated Cockpit System Technology
Handlebar:
BMC HB D4 01, 0, 6 | 01 Premium Carbon | Race Geometry | 125mm drop, 80mm reach, 6° flare
Grips:
BMC Tacky 3mm
Seat
Seatpost:
Teammachine SLR 01 Gen 5 | Advanced Carbon Aero Shaped Seatpost | 0mm Offset Size 47-51 and 10mm Offset Size 54-61
Saddle:
Fizik Vento Argo X5 | 140mm
Drivetrain
Crankset:
SHIMANO Ultegra (FC-R8100)
Chainrings:
52-36T
Power Meter:
4iiii Precision Gen3+ Power Meter (Non-Drive Side)
Cassette:
SHIMANO Ultegra (CS-R8101)
Cassette Size:
11-34T
Chain:
SHIMANO CN-M8100
Front Derailleur:
SHIMANO Ultegra Di2 (FD-R8150)
Rear Derailleur:
SHIMANO Ultegra Di2 (RD-R8150)
Shifters:
SHIMANO Ultegra Di2 (ST-R8170)
Gears:
2 x 12
Bottom Bracket:
SHIMANO Ultegra Press-Fit Bottom Bracket (SM-BB72-41B)
Brakes
Brake Levers / Calipers:
SHIMANO Ultegra (BR-R8170)
Rotors:
SHIMANO Ultegra (RT-CL800)
Rotor Size (F/R):
160 / 160mm
Wheels
Rims:
CR 40 Carbon | Tubeless Ready | 40mm
Hubs (F/R):
TXC-812 & TXC-240A Center Lock
Tires:
Continental Grand Prix TR | Tubeless | 28mm
Tubeless Information:
Tubeless Rim | Tubeless Tires
Accessories
In the Box:
Aerocore Bottle Cages
Additional Information
Tire Clearance:
32mm measured tire
Weight without Pedals:
7.9kg | Size 54 as pictured with all accessories
ASTM Classification:
Level 1
System Weight Limit:
110kg
