Frameset
Frame:
Teammachine SLR 01 Gen 5 | 01 Pro Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Full Mount - UDH | TCC Race Compliance Level | Flat Mount Disc | 12 x 142mm Thru-Axle
Fork:
Teammachine SLR 01 Gen 5 | 01 Pro Carbon | ICS Technology Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle | 48mm offset Size 47-51 43mm offset Size 54-61
Cockpit
Handlebar:
ICS Carbon Evo | One Piece Full Carbon Cockpit | 127mm drop, 70mm reach, 8° flare
Grips:
BMC Tacky 3mm
Seat
Seatpost:
Teammachine SLR 01 Gen 5 | Advanced Carbon Aero Shaped Seatpost | 0mm Offset Size 47-51 and 10mm Offset Size 54-61
Saddle:
Fizik Vento Argo R5 | 140mm
Drivetrain
Crankset:
SRAM Force AXS (FC-FRC-P-E1)
Chainrings:
48-35T
Power Meter:
SRAM Force AXS Power Meter | Single Side (FC-FRC-P-E1)
Cassette:
SRAM Force (CS-XG-1270-E1)
Cassette Size:
10-36T
Chain:
SRAM Force (CN-FRC-E1)
Front Derailleur:
SRAM Force AXS (FD-FRC-E-E1)
Rear Derailleur:
SRAM Force AXS (RD-FRC-E-E1)
Shifters:
SRAM Force AXS (ED-FRC-E1)
Gears:
2 x 12
Bottom Bracket:
SRAM DUB PressFit Bottom Bracket (BB-DUB-PF-A1)
Brakes
Brake Levers / Calipers:
SRAM Force AXS (ED-FRC-E1)
Rotors:
SRAM CenterLine X Rotor (RT-CLN-X-A2)
Rotor Size (F/R):
160 / 160mm
Wheels
Rims:
CR 40 Carbon | Tubeless Ready | 40mm
Hubs (F/R):
TXC-812 & TXC-2406 Center Lock
Tires:
Pirelli P Zero Race TLR | Tubeless | 28mm
Tubeless Information:
Tubeless Rim | Tubeless Tires
Accessories
In the Box:
Aerocore Bottle Cages | Computer mount for Garmin, Wahoo and GoPro mount
Additional Information
Tire Clearance:
32mm measured tire
Weight without Pedals:

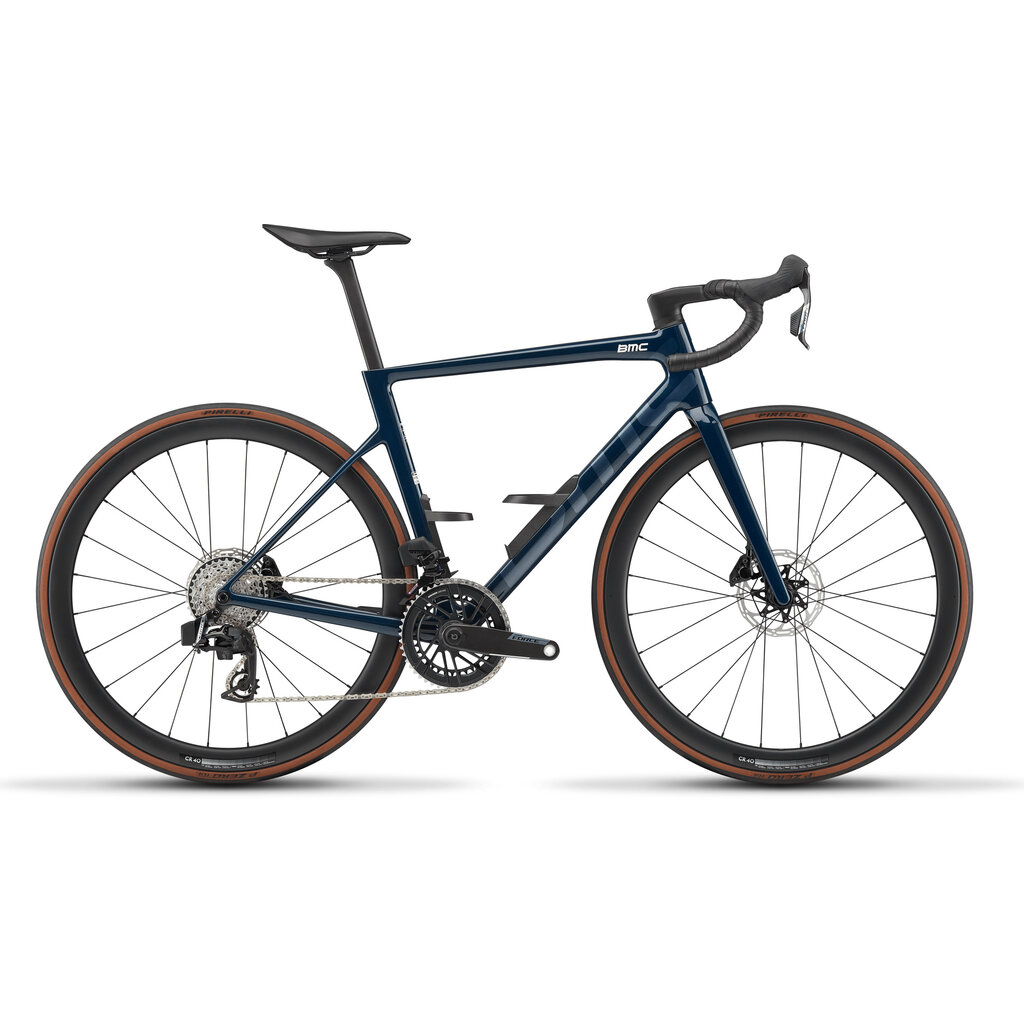

7.6kg | Size 54 as pictured with all accessories
ASTM Classification:
Level 1
System Weight Limit:
110kg
