Frameset
Frame:
Roadmachine Gen 3 | Advanced Carbon with Tuned Compliance Concept Endurance | ICS Technology Stealth Cable Routing | Fender Mounts | Integrated Downtube Storage | Full Mount - UDH | 12 x 142mm Thru-Axle
Fork:
Roadmachine Gen 3 | Advanced Carbon with Tuned Compliance Concept Endurance | Internal Cable Routing | Fender Mounts | Flat Mount Disc | 12 x 100mm Thru-Axle | 50mm offset Size 47-51 | 45mm offset Size 54-61
Cockpit
Stem:
BMC RSM 01 | Integrated Cockpit System Technology
Handlebar:
BMC HB D4 03, 0, 12 | Alloy 6061 | Endurance Geometry | 125mm drop, 70mm reach, 12° flare
Grips:
BMC Tacky 3mm
Seat
Seatpost:
Roadmachine Carbon D-Shaped Seatpost | 0mm Offset Size 47-51 and 15mm Offset Size 54-61 | D-Fender Compatible
Saddle:
Selle Italia Novus Boost Evo Superflow | Manganese Rail | 145mm
Drivetrain
Crankset:
SHIMANO Ultegra (FC-R8100)
Chainrings:
50-34T
Cassette:
SHIMANO Ultegra (CS-R8101)
Cassette Size:
11-34T
Chain:
SHIMANO CN-M8100
Front Derailleur:
SHIMANO Ultegra Di2 (FD-R8150)
Rear Derailleur:
SHIMANO Ultegra Di2 (RD-R8150)
Shifters:
SHIMANO Ultegra Di2 (ST-R8170)
Gears:
2 x 12
Bottom Bracket:
SHIMANO Ultegra Press-Fit Bottom Bracket (SM-BB72-41B)
Brakes
Brake Levers / Calipers:
SHIMANO Ultegra (BR-R8170)
Rotors:
SHIMANO Ultegra (RT-CL800)
Rotor Size (F/R):
160 / 160mm
Wheels
Rims:
AR 27 | Tubeless Ready | 27mm
Hubs (F/R):
CL-712 & RXC-142S Center Lock
Tires:
Vittoria Rubino V TLR | Tubeless | 32mm
Tubeless Information:
Tubeless Rim | Tubeless Tires
Accessories
In the Box:
Integrated Rear Light 25 | Storage Pouch
Additional Information
Tire Clearance:
up to "40mm measured" (frameset clearance) but limited to "34mm measured" by the front derailleur
Weight without Pedals:

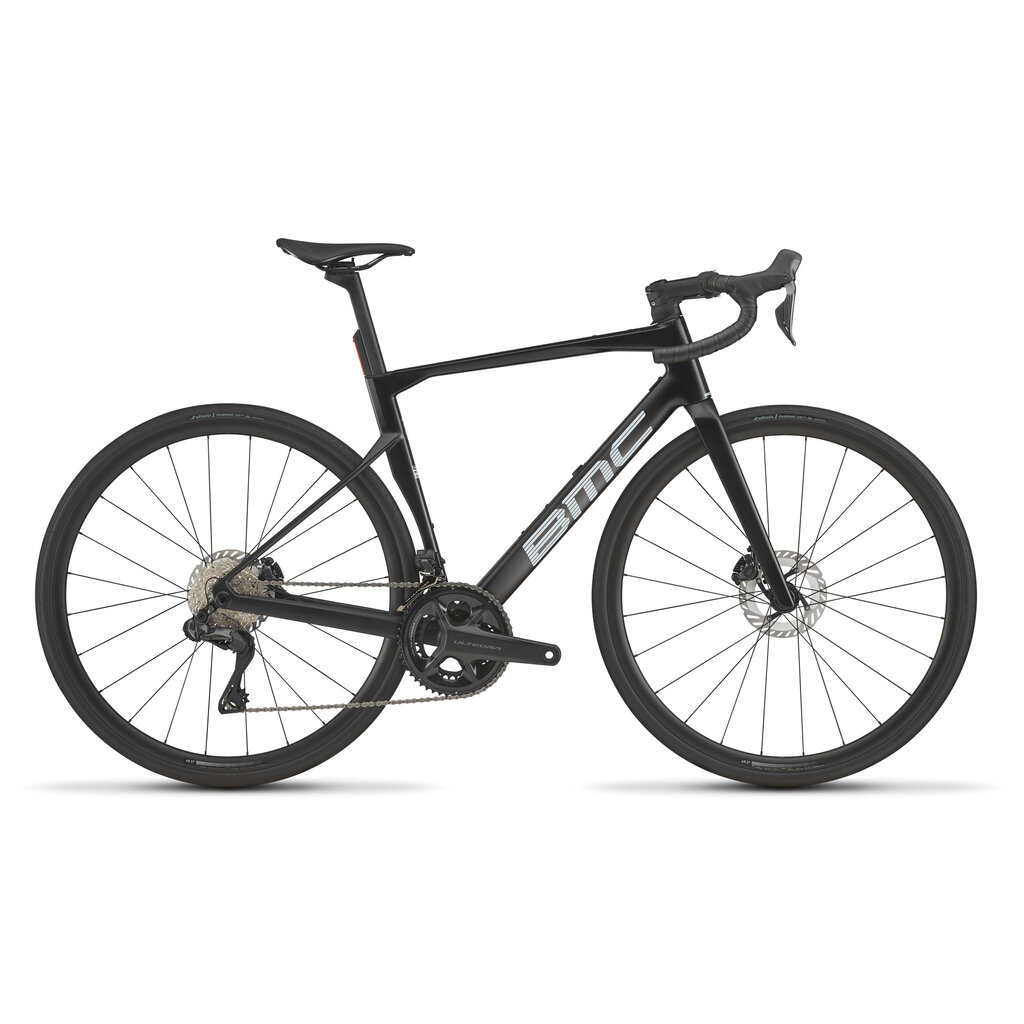

8.6kg | Size 54 as pictured with all accessories
ASTM Classification:
Level 2
System Weight Limit:
110kg
